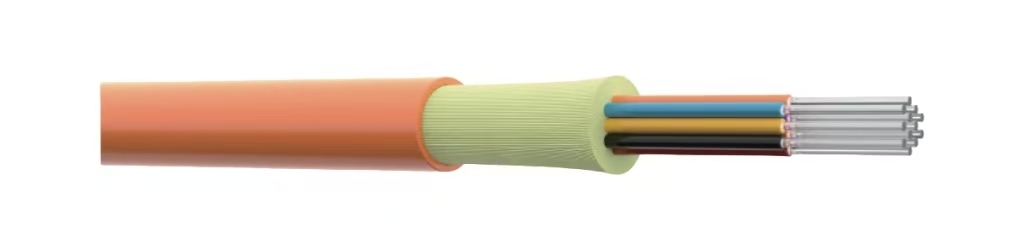

Indoor Tightly Wrapped Fibre Optic Cables GDX101,FRNC/LSOH 02F~24F

Product Application

Indoor optical cables are constructed by uniformly distributing multiple strands of aramid fibers around the optical fiber core to provide reinforcement, followed by the application of a flame-retardant outer jacket. They can be installed in limited spaces without causing tangling effects. By selecting high-quality optical fibers, using specialized equipment, employing precision molds, and optimizing the number of aramid fiber strands and cable tension, the product's performance exceeds the requirements of international standards such as ISO/IEC 11801. The product features high-quality performance, with performance metrics exceeding the requirements of standards such as ANSI/TIA-568.3-D, IEC 60794, and YD/T 1258.4; the optical fiber characteristics meet and exceed the requirements of standards such as ITU-T G.561, ITU-T G.652.D, and IEC 60793.
  • Indoor Tightly Wrapped Fibre Optic Cables GDX101,FRNC/LSOH 02F~24F

Description

Product Features

The use of aramid fiber reinforcement ensures that the optical fiber does not experience tensile strain after installation, thereby guaranteeing the stability of data transmission. The optical cable is lightweight with a small bending radius, making it easy to install and convenient for construction operations. The outer sheath is made of LSOH (Low Smoke Zero Halogen), which has excellent flame-retardant and environmentally friendly properties, ensuring the safety of personnel and the environment.

Product Performance

  • Allowable Tensile Force: Long - term: 200N; Short - term: 660N
  • Allowable Crush Force: Long - term: 300N/100mm; Short - term: 1000N/100mm
  • Bending Radius: Dynamic: 20×D(Optical cable diameter); Static: 10×D
  • Ambient Temperature: - 20℃ - +60℃ (storage, transportation, use); - 05℃ - +50℃ (installation)
  • Flame Retardant Performance:
    • Halogen Content: GB/T 17650.1,GB/T17650.2,IEC 60754-1/-2
    • Flame Propagation: GB/T 18380.12,IEC 60332-1,GB 31247
    • Smoke Density: GB/T 17651,IEC 61034-1/-2

Order Information

Product Model Product Description Core Count Color Unit
GDX101-B1dZL-xx GDX101 single-mode indoor optical cable, G.652.Dxx core, FRNC/LS0H outer sheath  02~12 cores Yellow 1KM/box
GDX101-0M2ZL-xx GDX101 multimode indoor optical cable, OM2xx core, FRNC/LS0H outer sheath  02~12 cores Orange 1KM/box
GDX101-0M3ZL-xx GDX101 multimode indoor optical cable, OM3xx core, FRNC/LS0H outer sheath 02~12 cores Aqua green 1KM/box
GDX101-0M4BE-xx GDX101 multimode indoor optical cable, 0M4xx core, GB/B1 outer jacket 02~12 cores Purple 1KM/box

 FRNC/LSOH = Flame Retardant, Non-Corrosive/Low Smoke, Halogen-Free IEC 60332-1
GB/B1 = GB 31247-B1
