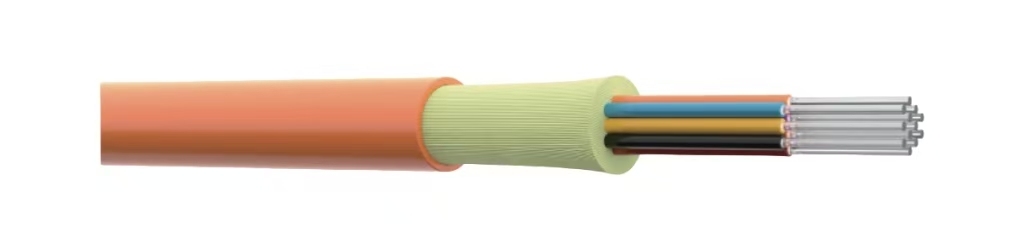

Indoor Tightly Wrapped Fibre Optic Cables GDX102,FR/PVC 02F~24F

Product Application

Indoor optical cables are constructed by uniformly distributing multiple strands of aramid fibers around the optical fiber core to provide reinforcement, followed by the application of a flame-retardant outer sheath. This design allows for installation in confined spaces without causing tangling effects. By selecting high-quality optical fibers, using specialized equipment, employing precision molds, and optimizing the number of aramid filament strands and cable tension, the product's performance exceeds the requirements of international standards such as ISO/IEC 11801. It offers superior product performance, with performance metrics surpassing the standards of ANSI/TIA 568.3-D, IEC 60794, and YD/T 1258.4.
  • Indoor Tightly Wrapped Fibre Optic Cables GDX102,FR/PVC 02F~24F

Description

Product Features

Reinforced with aramid fibers to ensure that the optical fiber is free of tensile strain after installation, guaranteeing stable transmission performance.
The optical cable is lightweight with a small bending radius, making it easy to install and convenient for construction operations. Composed of multiple layers of small-diameter optical cables with outer sheaths, it is more suitable for branch installation or splicing.
The outer sheath is made of PVC with excellent flame-retardant and environmentally friendly properties, ensuring the safety of personnel and the environment.

Product Performance

  • Allowable Tensile Force: Long - term: 200N; Short - term: 660N
  • Allowable Crush Force: Long - term: 300N/100mm; Short - term: 1000N/100mm
  • Bending Radius: Dynamic: 20×D(Optical cable diameter); Static: 10×D
  • Ambient Temperature: - 20℃ - +60℃ (storage, transportation, use); - 05℃ - +50℃ (installation)
  • Flame Retardant Performance:IEC 60332-1

Order Information

Product Model Product Description Core Count Color Unit
GDX102-B1dVG-xx GDX102 single-mode indoor optical cable, G.652.Dxx cores, FR/PVC outer sheath 02~12 cores Yellow 1KM/box
GDX102-0M2VG-xx GDX102 multimode indoor optical cable, 0M2xx core, FR/PVC outer sheath 02~12 cores Orange 1KM/box
GDX102-0M3VG-xx GDX102 multimode indoor optical cable, OM3 xx core, FR/PVC outer sheath 02~12 cores Aqua green 1KM/box
GDX102-0M4VG-xx GDX102 multimode indoor optical cable, OM4xx core, FR/PVC outer sheath 02~12 cores Purple 1KM/box

FR/PVC = Flame Retardant/Polyvinyl Chloride IEC 60332-1
