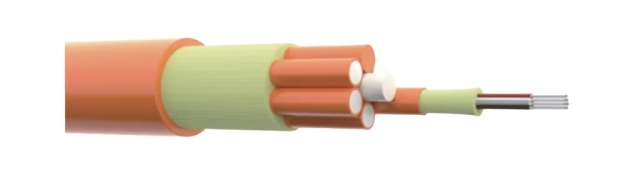

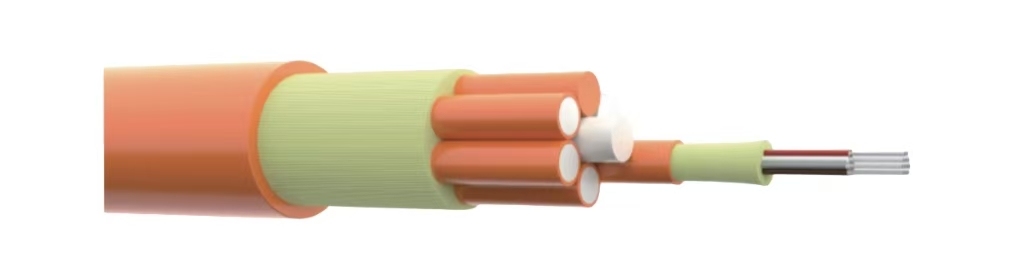

Indoor Tightly Wrapped Stranded Fibre Optic Cable GDX111,FRNC/LSOH 24F~144F

Product Application

Indoor optical cables are constructed by uniformly distributing multiple strands of aramid fibers around the optical fiber core to provide reinforcement, followed by the application of a flame-retardant outer jacket. They can be installed in limited spaces without causing tangling effects. By selecting high-quality optical fibers, using specialized equipment, employing precision molds, and optimizing the number of aramid fiber strands and cable tension, the product's performance exceeds the requirements of international standards such as ISO/IEC 11801. The product features high-quality performance, with performance metrics exceeding the requirements of standards such as ANSI/TIA-568.3-D, IEC 60794, and YD/T 1258.4: the optical fiber characteristics meet and exceed the requirements of ITU-T G.561, ITU-T G.652.D, and IEC 60793 standards.
  • Indoor Tightly Wrapped Stranded Fibre Optic Cable GDX111,FRNC/LSOH 24F~144F

Description

Product Features

Features high-quality product performance, with performance metrics exceeding the requirements of standards such as ANSI/TIA-568.3-D, IEC 60794, and YD/T 1258.4; fiber characteristics meet and exceed the requirements of standards such as ITU-T G.651, ITU-T G.652.D, and IEC 60793:
Features aramid fiber reinforcement to ensure no tensile strain on the optical fiber after installation, guaranteeing stable transmission performance; lightweight cable with a small bending radius, easy to install, and convenient for construction operations; composed of multiple layers of small-diameter optical cables with outer sheaths, making it more suitable for branch installations or splicing;
Uses LSOH with excellent flame-retardant and environmental performance as the outer sheath to ensure the safety of personnel and the environment.

Product Performance

  • Allowable Tensile Force: Long - term: 400N; Short - term: 1320N
  • Allowable Crush Force: Long - term: 300N/100mm; Short - term: 1000N/100mm
  • Bending Radius: Dynamic: 20×D(Optical cable diameter); Static: 10×D
  • Ambient Temperature: - 20℃ - +60℃ (storage, transportation, use); - 05℃ - +50℃ (installation)
  • Flame Retardant Performance:                                                                                                              Halogen content:GB/T 17650.1,GB/T17650.2,IEC 60754-1/-2
    Flame spread:GB/T 18380.12,IEC 60332-1,GB 31247
    Smoke density:GB/T 17651,IEC 61034-1/-2

Order Information

Product Model Product Description Core Count Color Unit
GDX111-B1dZL-xx GDX111 single-mode indoor optical cable, G.652.Dxx core, FRNC/LS0H outer sheath  24~144F Yellow 1KM/box
GDX111-0M2ZL-xx GDX111 multimode indoor optical cable, OM2xx core, FRNC/LS0H outer sheath  24~144F Orange 1KM/box
GDX111-0M3ZL-xx GDX111 multimode indoor optical cable, OM3xx core, FRNC/LS0H outer sheath  24~144F Aqua green 1KM/box
GDX111-0M4ZL-xx GDX111 multimode indoor optical cable, OM4 xx core, GB/B1 outer jacket 24~144F Purple 1KM/box

FRNC/LSOH = Flame Retardant, Non-Corrosive/Low Smoke, Halogen-Free IEC 60332-12
GB/B1 = GB 31247-B1
