Features high-quality product performance, with performance metrics exceeding the requirements of standards such as ANSI/TIA-568.3-D, IEC 60794, and YD/T 1258.4
The optical fiber characteristics meet and exceed the requirements of standards such as ITU-T G.561, ITU-T G.652.D, and IEC 60793. It uses aramid fiber reinforcement to ensure that the optical fiber does not experience tensile strain after installation, thereby ensuring the stability of data transmission.

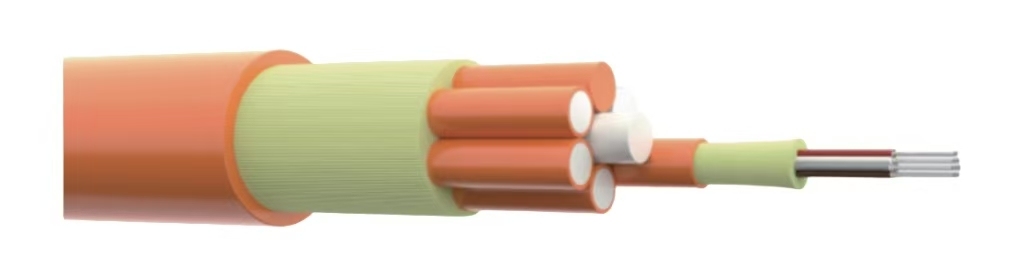

The optical cable is lightweight with a small bending radius, making it easy to install and convenient for construction operations Composed of multiple layers of small-diameter optical cables with outer sheaths, it is more suitable for branch installation or splicing
The outer sheath uses PVC with excellent flame-retardant and environmental performance, ensuring the safety of personnel and the environment
- Allowable Tensile Force: Long - term: 400N; Short - term: 1320N
- Allowable Crush Force: Long - term: 300N/100mm; Short - term: 1000N/100mm
- Bending Radius: Dynamic: 20×D（Optical cable diameter）; Static: 10×D
- Ambient Temperature: - 20℃ - +60℃ (storage, transportation, use); - 05℃ - +50℃ (installation)
- Flame Retardant Performance: Halogen content:GB/T 17650.1,GB/T17650.2,IEC 60754-1/-2
Flame spread:GB/T 18380.12,IEC 60332-1,GB 31247
Smoke density:GB/T 17651,IEC 61034-1/-2
| Product Model |
Product Description |
Core Count |
Color |
Unit |
| GDX112-B1dVG-xx |
GDX112 single-mode indoor optical cable, G.652.Dxx core, FR/PVC outer sheath |
24~144core |
Yellow |
1KM/box |
| GDX112-0M2VG-xx |
GDX112 multimode indoor optical cable, OM2xx core, FR/PVC1 outer sheath |
24~144core |
Orange |
1KM/box |
| GDX112-0M3VG-xx |
GDX112 multimode indoor optical cable, 0M3xx core, FR/PVC outer sheath |
24~144core |
Aqua green |
1KM/box |
| GDX112-0M4VG-xx |
GDX112 multimode indoor optical cable, OM4xx core, FR/PVC outer jacket |
24~144core |
Purple |
1KM/box |
