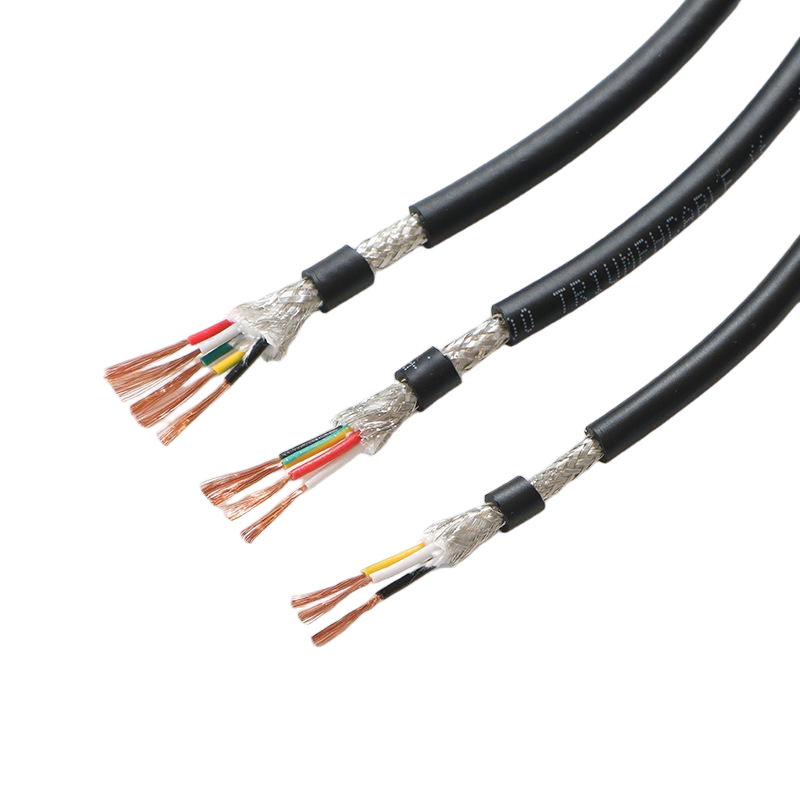

TRVVP Shielded Cable for Cable Chains, 2 Cores,0.2–0.5 mm²: Highly Flexible, Bend-Resistant Shielded Cable for Industrial and Engineering Applications

Name: TRVVP Shielded Cable for Cable Chains, 2 Cores,0.2–0.5 mm²: Highly Flexible, Bend-Resistant Shielded Cable for Industrial and Engineering Applications
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

Application Scope

Control signal cables for connecting robot control systems (including arc welding robots, spot welding robots, assembly robots, painting robots, material handling robots,underwater exploration robots, engraving robots, palletising robots and other types of robots);suitable for applications where robots are subjected to severe bending, where cables in moving drag chains are subject to frequent wear, and where electromagnetic interference is generated by motors and other equipment.

Get The Latest Quote

Description

Product Features

Flexible, bendable, abrasion-resistant surface, cut-resistant
Flame retardancy complies with IEC 60332-1-2; oil resistance complies with EN 60811-404
Travel speed: ≤3 m/s
Bending radius: When travel distance is <10 m, the bending radius is 4×D; when travel distance is ≥10 m, the bending radius is 7.5×D (D = cable outer diameter)
Service life of over 20 million chain drag cycles

Product Structure

Conductor: Ultra-fine, multi-strand, finely twisted bare copper wire (with tensile core), compliant with IEC 60228
Insulation: Category 6 TPE core insulation
Outer sheath: PUR outer sheath, grey (RAL 7001)
Stranding method: Less than 8 cores: bundled stranding; more than 8 cores: grouped stranding around the reinforcement core

Technical Specifications

Conductor marking: Black conductors with white numerical marking in accordance with DIN VDE 0293
Conductor resistance: Complies with IEC 60228 Class 6
Protective earth conductor: G = Includes yellow-green protective earth conductor; X = Does not include yellow-green protective earth conductor

Parameter Table

Specification (mm²)	Cable outer diameter (mm)	Conductor outer diameter (mm)	Conductor Resistance at 20℃ (Max, Ω/km)	Insulation thickness (mm)	Sheath thickness (mm)	Rated voltage (V)
2*0.2	5.3±0.2	1.3	92.3	0.4	1.0	300/300V
2*0.3	5.5±0.2	1.5	69.2	0.5	1.1	300/300V
2*0.5	5.9±0.2	1.8	39	0.5	1.1	300/300V
2*0.75	6.7±0.2	2.1	26	0.6	1.1	300/300V
2*1.0	7.6±0.2	2.4	19.5	0.6	1.2	300/300V
2*1.5	8.7±0.2	2.8	13.3	0.7	1.2	300/300V
2*2.5	10.3±0.2	3.4	7.98	0.8	1.3	300/300V
