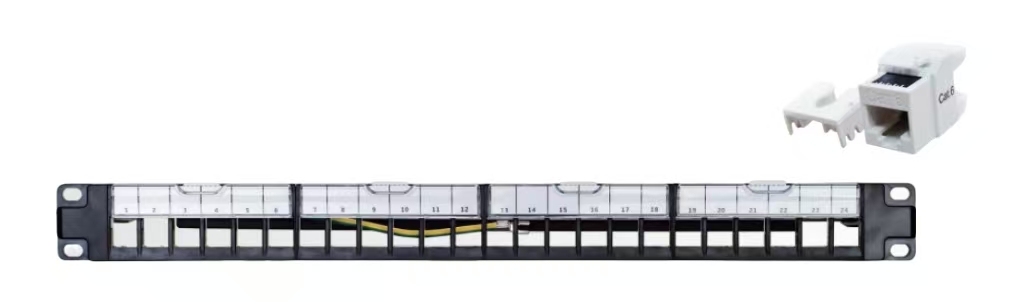

Unshielded Copper Cable Distribution Frame 19”1U 24x Keystone

Name: Unshielded Copper Cable Distribution Frame 19”1U 24x Keystone
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

Product Description

Used for installing Keystone-type copper cable modules to manage cabling and module installation for horizontal and vertical subsystems; features an aesthetically pleasing front panel made from high-resistance fuel injection molding, suitable for use in all data centers; Combine modules to form the required application-grade patch panels, meeting the application requirements specified in standards GB50311, ISO/IEC 11801, or ANSI/TIA-568.2-D, suitable for use in all unshielded systems.

Get The Latest Quote

Description

Product Features

High-pressure resistant and flame-retardant front panel, UL94V-0 rated; the patch panel comes with a rear cable management rack for easy cable management; Snap-in structure for easy installation/removal of modules; compact size Label window on the surface with replaceable label strips for easy management;
19" standard structure, compatible with all standardized cabinets; optional dust covers and colored labels available for different network applications;

Product performance
Width:19”
Depth:80mm (including cable management rack at the rear)
Height:1U
Temperature range:-40°C to +70°C (during storage) ；-10°C to +60°C (during operation)

Order Information

Product Model	Product Description	Color	Unit
TPX00C-UK1U024-BK	19" 1U 24x unshielded keystone patch panel, empty frame	Black	1 set
TPX51C-UK1U024-BK	19" 1U 24x unshielded keystone patch panel (with 24 Cat.5e unshielded modules)	Black	1 set
TPX60C-UK1U024-BK	19" 1U 24x unshielded keystone patch panel (with 24 Cat.6 unshielded modules)	Black	1 set
