- High Standard: Complies with ITU - T G.984 / G.988 standards; Meets China's relevant GPON standards.
- Three-layer functionality: Supports static routing RIP v1/v2；OSFP v2 (optional)
- Easy to Manage: Friendly EMS / Web / Telnet / CLI management; Supports APP management.
- Perfect Interconnection Function: The product meets the new requirements of China Telecom CT / 1.0 and can easily realize interconnection with standard OLT devices of mainstream manufacturers in the industry, and mixed networking minimizes network construction costs.
- High Density, Compact and Small: 1U height compact design; uses mainstream chip solutions for good compatibility.
Item
|
GPL116-16P404-2AC |
| Installation Method |
1U, 19-inch standard rack |
Uplink port |
Gigabit |
4xRJ45, 10/100/1000M auto-negotiation |
| 4xGE/10GE, SFP+ slots |
| 10 Gigabit |
GPON Port |
Number of ports |
16xGPON，SFP |
| Rate/wavelength |
Uplink speed 1.244 Gbps, downlink speed 2.488 Gbps; wavelength TX1490, RX1310 |
| Physical interface |
Class C+，SC/UPC |
| Transmit power |
3~+7dBm(Class C+)/+4.5~+10dBm(Class C++) |
| Receive sensitivity |
-30dBm(Class C+)/-32 dBm(Class C++) |
| Saturation optical power |
-12 dBm(Class C+)/-12 dBm(Class C++) |
| Transmission distance |
20km |
| Maximum splitting ratio |
1:128 |
| Management interface |
1 CONSOLE port, 1x10/100BASE-T out-of-band port |
| Dimensions (L*W*H) |
1U,442mm*320mm*43.6mm |
| Weight |
<3.5KG |
| AC power supply |
AC 100~240V, 50/60Hz, supports dual power supply modules (hot backup) |
| Power consumption |
＜85W |
| Operating environment |
Temperature |
Operating temperature: 0 to +50°C, storage temperature: -40 to +85°C |
| Humidity |
Operating humidity: 5% to 90% (non-condensing) |
| Product Model |
Product Description |
Unit |
| GPL116-16P404-2AC |

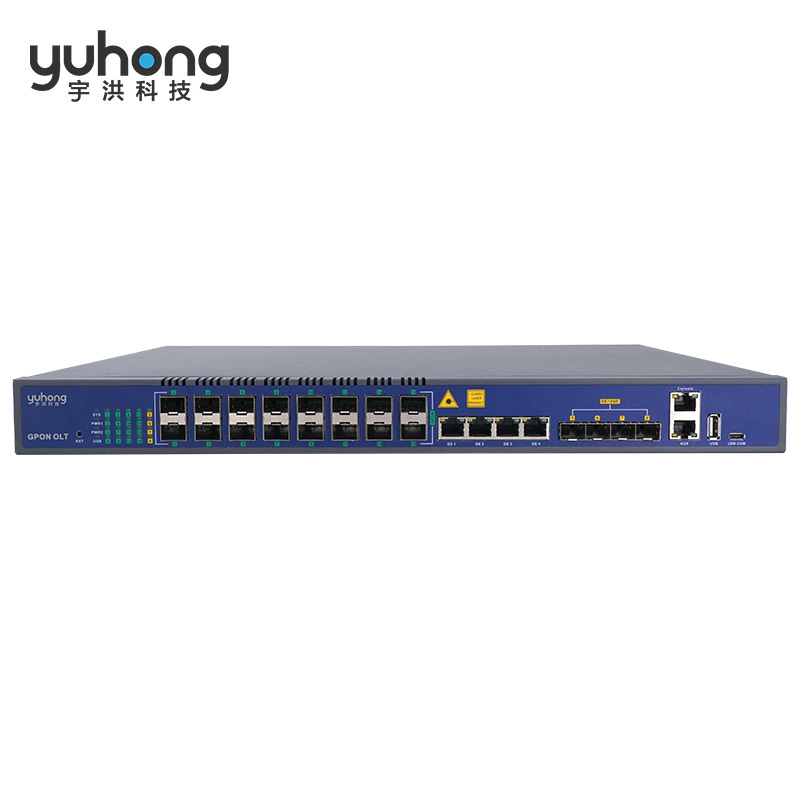

GPON OLT, box type, 1U, up to 16 GPON ports, 4 GE network ports and 4 GE/10GE (SFP/SFP+) optical ports for uplink, optical modules required, 220V AC power supply, dual power supply modules |
Set |
| GPON OLT SFP CLASS C+ |
OLT GPON module, SFP, Class C+, downstream 2.5 G/upstream 1.25 G, TX1490nm/RX1310nm, SC interface |
1 piece |
Notes:
The uplink module supports multi-mode and single-mode modules, with options for Gigabit and 10 Gigabit SFP/SFP+, and distances of 300m, 10km, 20km, 40km, and 60km available.
For further information, please consult your local sales and technical representatives. Thank you.
