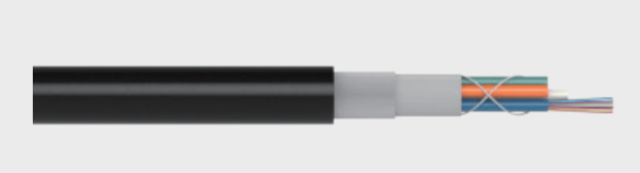

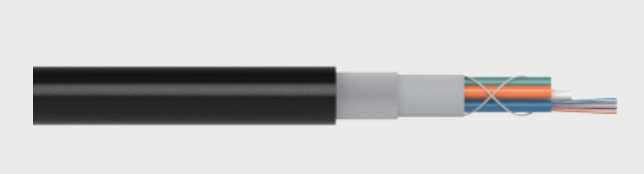

Bundle Tube Laminated Stranded Indoor/Outdoor General Purpose Fiber Optic Cable GDX511,Glass Fiber,FRNC/LS0H 24F~144F

Product Features

Product Performance

• Allowable Tensile Force: Long - term: 400N; Short - term: 1320N
• Allowable Crush Force: Long - term: 300N/100mm; Short - term: 1000N/100mm
• Bending Radius: Dynamic: 20×D（Optical cable diameter）; Static: 10×D
• Ambient Temperature: - 40℃ - +70℃ (storage, transportation, use); - 15℃ - +50℃ (installation)

Order Information

FRNC/LSOH = Flame retardant, non-toxic, low smoke, halogen-free



Dual-Purpose Indoor-Outdoor Cabling for Network Transitions
Yuhong’s GDX511 Stranded Bundle Tube Fiber Optic Cable is purpose-built for complex cabling scenarios where indoor and outdoor environments converge. Designed with versatility in mind, this cable supports 24F to 144F configurations and operates effectively in both protected indoor ducts and semi-exposed external pathways. Its construction enables seamless transitions between building entry points and interior networks, reducing the need for splice points or multiple cable types. For integrators seeking a single fiber optic cable solution across multiple environmental zones, GDX511 delivers operational continuity, environmental resilience, and compact core integration.

Multi-Layered Structure with Glass-Fiber Reinforcement
At the core of GDX511 lies a bundle tube structure, which encapsulates fibers within gel-filled tubes to buffer vibration, moisture ingress, and physical stress. Surrounding the bundle is a laminated tape layer that enhances radial strength and crush resistance. Glass-fiber yarn is employed as a dry water-blocking and tensile-resistant medium, giving the cable mechanical strength without adding metallic elements—making it particularly suitable for areas where electromagnetic compatibility is required. This architecture also aids in simplified termination and faster prep for splicing, crucial for high-count fiber optic internet cable networks.

Optimized Fire Safety and Environmental Compliance
With a FRNC-LS0H (Flame-Retardant Non-Corrosive, Low Smoke Zero Halogen) outer jacket, the GDX511 cable is engineered to meet modern fire codes and environmental directives. It ensures minimal emission of harmful substances during combustion, safeguarding personnel and equipment in public infrastructure, enterprise buildings, and transport systems. Whether deployed in riser shafts, equipment rooms, or cross-building interconnects, this fiber optic cable is aligned with strict building safety protocols while offering flexible deployment across structural zones with differing regulatory requirements.



Product Advantages

Bundle Tube Design for Core Protection and Stability
The GDX511 cable employs a stranded bundle tube configuration that encapsulates multiple optical fibers within flexible yet robust tubes. This design minimizes microbending losses and prevents fiber damage during installation or operation. Additionally, the gel-filled construction shields against water penetration while maintaining core alignment. For fiber optic cable manufacturers, this structural choice is integral to ensuring performance consistency across long-distance or high-fiber-count applications with minimal signal degradation.

Glass-Fiber Strength Member Eliminates Metallic Interference
The use of non-metallic glass-fiber yarn as both a tensile element and water-blocking layer represents a technical advantage for sensitive installations. Unlike steel-armored options, this configuration maintains signal purity in environments where electromagnetic interference (EMI) could compromise performance. It also offers excellent tensile resistance during pulling or vertical installations in building shafts. For fiber optic cable supplier inventories serving hospitals, labs, or data centers, this non-metallic resilience makes it a highly adaptive stock solution.

LS0H Jacket Ensures Human and Equipment Safety in Emergencies
Unlike PVC or halogenated jackets, the FRNC-LS0H sheath used in GDX511 emits minimal smoke and zero corrosive gases when exposed to fire. This enhances evacuation safety and protects surrounding equipment from acid-based corrosion during a combustion event. The result is a high-density fiber optic cable that supports both technical and human risk management needs in critical infrastructure. Its material formulation aligns with green building certifications and safety compliance in transport stations, schools, and telecom switching centers.



Use Scenarios

Campus Backbone Deployment by University IT Administrators
When universities expand or interconnect building clusters, IT departments require backbone cables capable of routing across courtyards while entering indoor patch panels without changeovers. The GDX511’s indoor-outdoor rating and glass-fiber reinforced structure allow it to be trenched beneath pavement and fed directly into IDF rooms without transition splices. Its fiber optic cable core count supports large-scale data distribution, while the LS0H jacket ensures safe routing through dormitories, libraries, and classrooms.

Public Transport Signal Network Installations by Rail Operators
Railway authorities updating control or surveillance systems need a robust fiber optic internet cable that runs from outdoor substations to indoor control units across terminal buildings. GDX511’s water-blocked tube structure prevents seepage in moist tunnel paths, and its non-metallic reinforcement avoids signal distortion near electrical systems. The flame-retardant jacket complies with urban safety codes, allowing cable runs through concourses, equipment bays, and control enclosures without compromise.

Telecom Cabinet Interconnects by Infrastructure Contractors
In metropolitan FTTH rollouts, contractors frequently need cables that connect outdoor telecom cabinets to internal vertical risers or MDU units. The GDX511 offers high-fiber-count configurations and smooth transition from outdoor-grade resilience to fire-safe indoor routing. It simplifies logistics by replacing two separate cable types with a single certified unit. Its fiber optic cable design improves installation speed and cost-efficiency for service providers building out smart residential blocks or mixed-use complexes.



About Us

Yuhong Communication is a Chinese-based fiber optic solutions provider serving global clients in telecom infrastructure, smart buildings, transportation, and industrial sectors. The company specializes in the design and manufacture of fiber optic cables, passive components, and system integration accessories. With a focus on compliance, technical customization, and R&D-driven development, Yuhong operates a modern production base certified to international standards. The GDX-series products reflect the brand’s commitment to structural innovation and installation efficiency, positioning it as a dependable fiber optic cable supplier across diverse, regulation-sensitive industries.

Request a quote now to configure your indoor-outdoor GDX511 cable with precise fiber counts and sheath options.



FAQ

What fiber counts are available for the GDX511 cable?
The cable supports 24F to 144F configurations, customizable based on project needs.

Can this cable be buried directly outdoors?
Yes, the laminated structure and water-blocking components make it suitable for duct or direct-bury applications in controlled conditions.

Is the cable compliant with building fire regulations?
Absolutely. The FRNC-LS0H sheath meets stringent low-smoke, halogen-free safety standards.

Does it require metallic grounding during installation?
No. The cable uses a non-metallic glass-fiber strength member, eliminating grounding requirements.

Can it be pre-terminated or delivered in custom lengths?
Yes, Yuhong offers pre-termination and length customization options for streamlined deployment.
