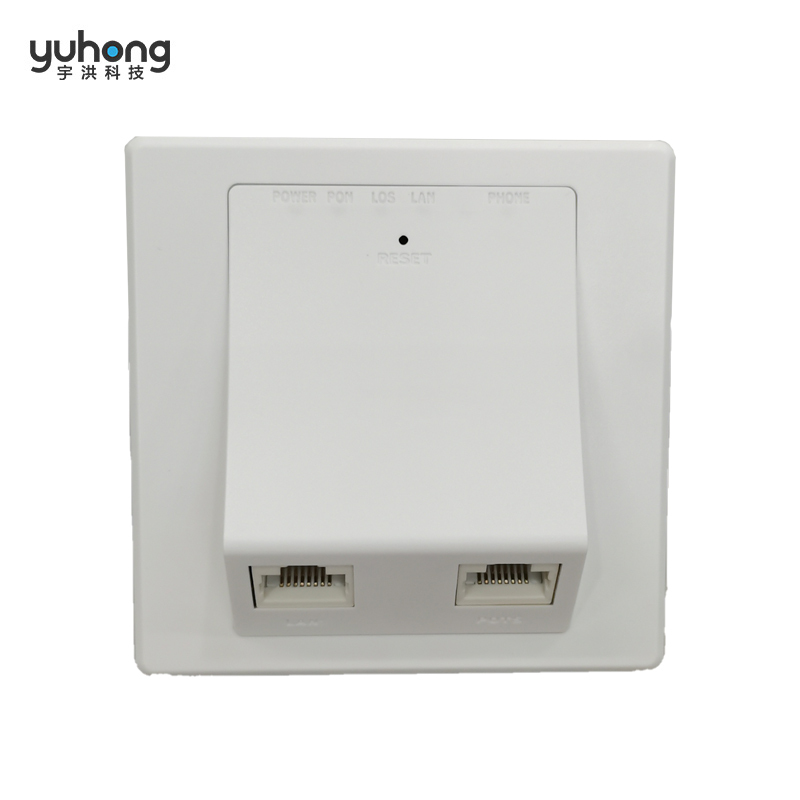

Name: GPON Terminal (Panel-type ONU) -- GPU860-1G0F1P
Brand: yuhong comms
Rating: 5 (1 reviews)

Description

Product Features

Elegant Appearance Design: It complies with the standard 86 - type box, adopts an existing buckle and card - pressing installation method, has good heat dissipation characteristics, high port density, and a dust - proof function at the bottom, which can effectively protect the pigtails and extend the service life of optical fiber connectors and optical cables.
Excellent Access Performance: Supports downstream 2.5Gbps and upstream 1.25Gbps PON line rates. Combined with OLT equipment, it can achieve up to 1:128 splitting ratio, and the network coverage radius can reach 20KM, reflecting the high bandwidth of PON channels, high user access volume, and longer access distance.
Refined Service Control Capability: Supports 802.1p/QoS function to achieve fine - grained bandwidth control of different service flows, and all users share the bandwidth resources. With QoS function, reliable service quality can be achieved, and different service priorities and service bandwidths in the network can be guaranteed.
Rich OAM Functions: Supports the standard OMCI and extended OMCI defined by China Telecom CT/1.3, including configuration, management, performance monitoring, fault management and security management.
Perfect Interconnection Function: The product meets the new requirements of China Telecom CT/1.3 and can easily realize interconnection with standard OLT devices of mainstream manufacturers in the industry, and mixed networking minimizes network construction costs.

Product Performance

Item	GPU860 - 1G0F0P
PON Port	Receiver Sensitivity: <- 28dBm Transmit Optical Power: 0 ~+4dBm Transmission Distance: 20KM Wavelength: Transmit 1310nm, Receive 1490nm Optical Interface: SC/UPC Connector
LAN Port	Quantity: 1×GE Rate: 10/100/1000Mbps adaptive Ethernet port, RJ45 connector
POTS Port	Quantity: 1×FXS Type: FXS, RJ11, supports G.711/G.723/G.726/G.729, supports T.30/T.38/G
Working Environment	Temperature: - 30℃ - +70℃ Humidity: 10% - 90% (non - condensing)
Power Supply	Working Voltage: AC 100 - 240V, 50/60Hz Power Consumption: ≤15W
Size (L×W)	86mm×86mm
Weight	<300g

Order Information

Product Model	Product Description	Unit
GPU860-1G0F1P	GPON ONU, panel type, 1 GPON port, 1 GE Gigabit Ethernet port, 1 POTS traditional telephone port, built-in 220V AC power supply	Set

Optimized Solution for Enterprise Network Connectivity
The GPU860 panel ONU is engineered for enterprise environments requiring reliable fiber optic access with integrated voice and data services. Its compact form factor suits centralized distribution panels, making it ideal for network engineers and IT administrators managing complex infrastructures. As a product from reputable panel ONU manufacturers, it facilitates scalable deployment scenarios and centralized control. The inclusion of a POTS port alongside 1 GE and 1 GPON port addresses converged network needs, supporting voice service alongside high-bandwidth data access for diverse enterprise user demands. The design notably matches well with OLT equipment from multiple vendors, ensuring compatibility and minimal integration risk.
Advanced Technical Specifications Enabling Robust Performance
Equipped with one GPON port, one Gigabit Ethernet port, and a POTS interface, this panel ONU supports a downstream rate of 2.5 Gbps and upstream of 1.25 Gbps, compliant with ITU G.984 standards. The optical interface uses SC/UPC connectors, with 1310 nm transmission and 1490 nm reception wavelengths, providing up to 20 km reach and a splitting ratio up to 1:128. Quality of Service is managed via 802.1p tagging, assuring prioritized bandwidth allocation critical for enterprise applications. With operating tolerances of -30°C to 70°C and optional AC 220V power input, the device maintains stable operations under variable environmental conditions. These technical features demonstrate why installations rely on panel ONU wholesales and panel ONU factories for consistent supply.
Real-World Applications in Network Architecture Deployments
This panel ONU model is widely adopted across campus, branch office, and enterprise networks requiring cost-effective fiber termination points. Its voice interface supports telephony integration, while gigabit data ports enable high-speed access for staff and guest users. Connecting seamlessly with mainstream OLT devices, this ONU facilitates unified network architecture deployments and simplifies maintenance tasks through OMCI and CT 1.3 protocol support for remote management. System architects benefit from the ease of integrating this solution into rack-mount panel configurations, maximizing space and reducing cabling complexity. This practical value exemplifies why panel ONU suppliers target enterprise customers seeking dependable fiber access solutions.

Product Advantages
Modular Design Tailored for Enterprise Infrastructure
The GPU860 panel ONU features a compact 86-type panel design that integrates a heat-dissipating, dust-proof enclosure optimizing device longevity and reliability. Designed by experienced panel ONU manufacturers, it supports straightforward modular installation in structured cabling environments, simplifying deployment and expansion in enterprise racks. The unit’s built-in AC power supply and standardized optical interface ensure compatibility with a broad range of existing infrastructure components. With precise adherence to ITU and industry standards, it reduces configuration mismatches, which is essential for network engineers requiring guaranteed interoperability across heterogeneous hardware sourced from different panel ONU factories.
High-Performance Reliability and User-Centric Management
Performance-wise, this panel ONU guarantees stable 2.5 Gbps downstream throughput with low latency and consistent upstream speeds of 1.25 Gbps. Its integration of OMCI management protocols enables rapid provisioning, configuration, and fault diagnostics, minimizing maintenance efforts. The inclusion of 802.1p/QoS mechanisms supports differentiated service levels for business-critical voice and data flows, enhancing user experience in enterprise service environments. As a product widely distributed by panel ONU suppliers, it balances high data throughput with low power consumption (≤15W), contributing to operational cost savings and system efficiency over time.

Use Scenarios
Campus Network Edge Connectivity
In large enterprise or university campus environments, this panel ONU acts as a critical access node connecting multiple user groups to centralized OLT cores. Its long-distance optical reach (up to 20 km) allows coverage across sprawling campuses without intermediate regeneration equipment, lowering capital and operational expenses. The device supports integration into structured cabling panels, enabling network administrators to streamline port management and segment user traffic effectively using QoS protocols. Its compatibility with mainstream OLT equipment ensures seamless interoperability in multi-vendor environments, a key requirement for procurement teams sourcing from reliable panel ONU wholesalers focused on standard-compliant enterprise solutions.
Enterprise Voice and Data Service Convergence
For office buildings requiring simultaneous voice and data services over a singular fiber interface, the GPU860 panel ONU facilitates POTS telephony alongside gigabit Ethernet data connections. This dual service capability simplifies infrastructure by reducing the need for separate voice networks, enhancing OPEX efficiency. The device’s support for CT 1.3 and OMCI protocols allows centralized remote management of individual ports and service parameters, improving network responsiveness and reducing downtime caused by manual interventions. Organizations valuing dependable and interoperable voice-data convergence solutions often procure units from established panel ONU factories and suppliers to guarantee long-term network integrity.

FAQ
What are the key connectivity features of the GPU860-1G0F1P panel ONU?
The GPU860-1G0F1P is a panel ONU that offers 1 GPON port, 1 GE RJ45 Ethernet port, and 1 POTS (FXS) port. It supports downstream rates up to 2.5 Gbps and upstream rates up to 1.25 Gbps, providing enterprise-grade bandwidth and voice services with reliable interoperability for mixed networking environments.

Can the GPU860-1G0F1P be customized for specific enterprise requirements?
As a leading panel ONU manufacturer, Guangzhou Yuhong Technology delivers adaptable solutions. While the GPU860-1G0F1P is designed as a standard product, configurations regarding port assignments and management protocols (OMCI/CT 1.3) ensure compatibility with various OLT equipment to meet diverse enterprise demands.

What installation environments are suitable for the GPU860 panel ONU?
The GPU860-1G0F1P’s compact 86 mm × 86 mm panel form factor integrates heat dissipation and dust-proof design, suitable for rack-mount panels in enterprise or campus networks. It operates reliably under -30°C to +70°C and 10% to 90% humidity (non-condensing), making it fit for a range of deployment scenarios.

How does Guangzhou Yuhong handle delivery and support for wholesale panel ONU orders?
As a reputable panel ONU supplier, Guangzhou Yuhong Technology supports bulk orders with professional packaging and freight arrangements. Technical support is available to assist with configuration and interoperability testing, facilitating smooth integration into enterprise networks and minimizing construction costs.
