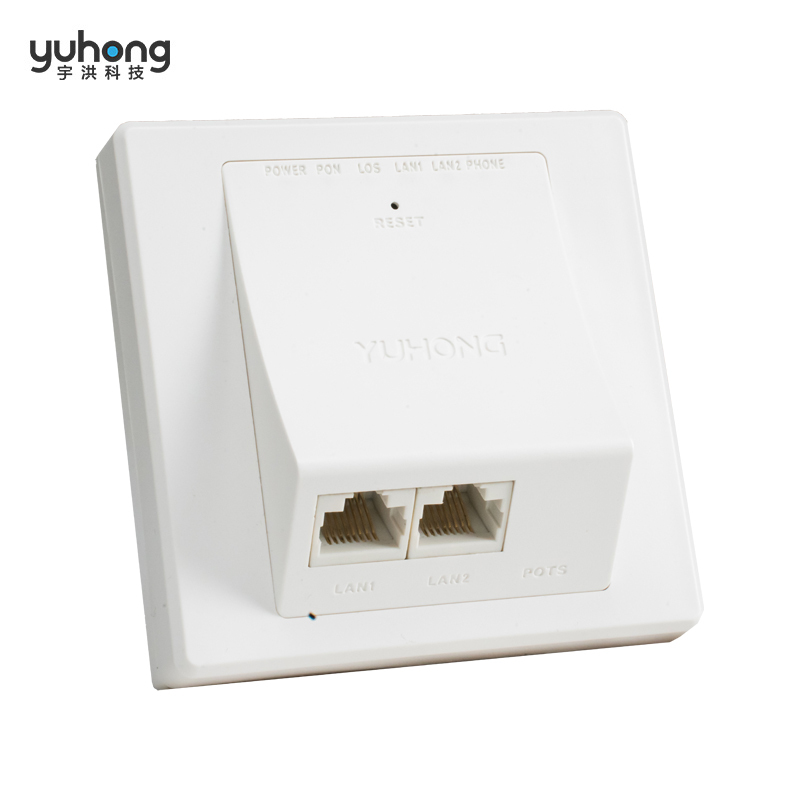

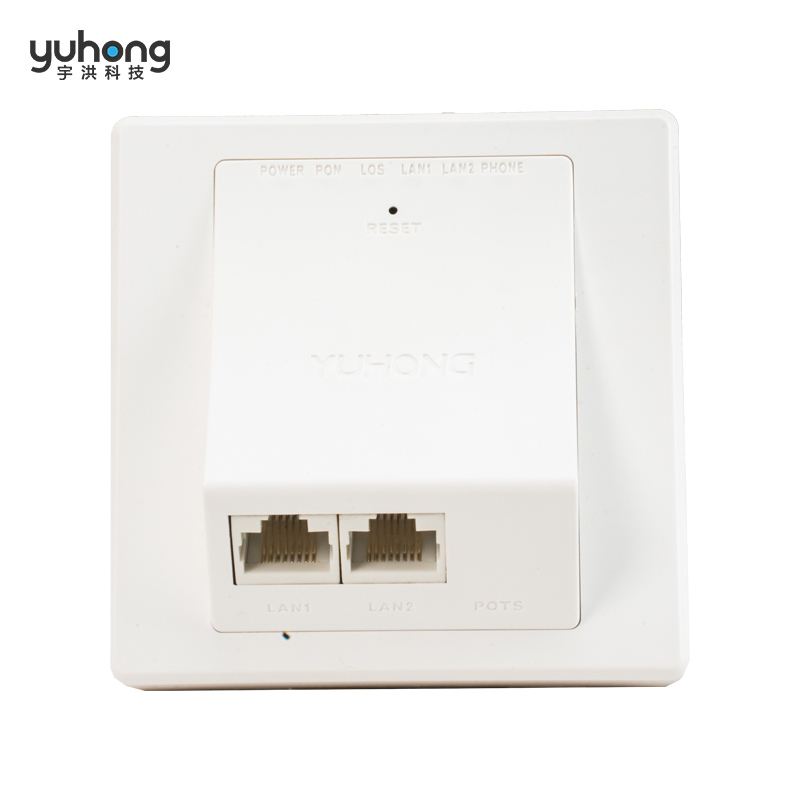

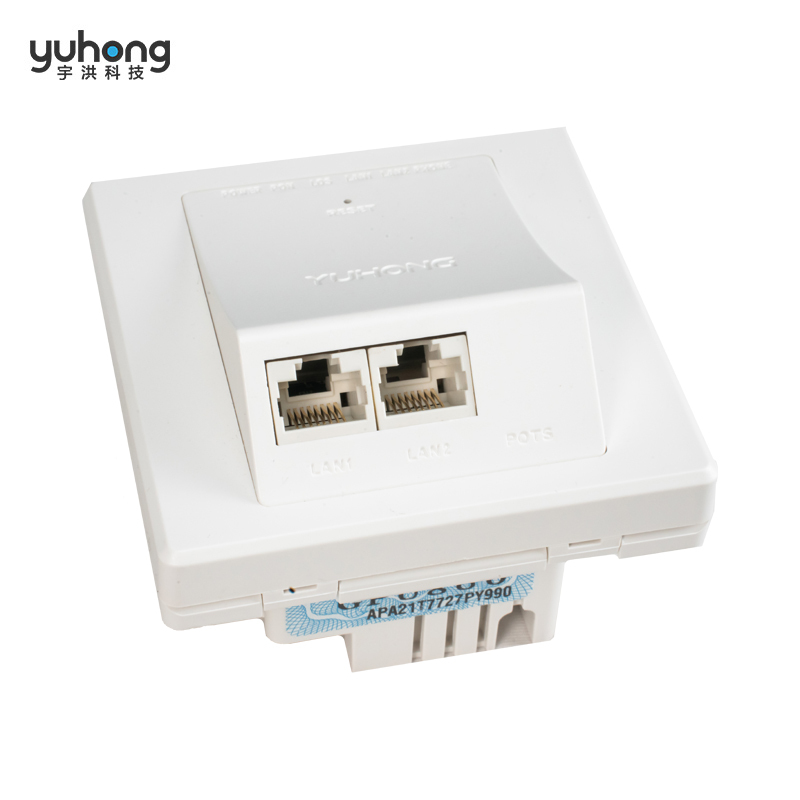

GPON Terminal (Panel-type ONU) -- GPU860-2G0F0P

Product Overview

The GPU860 panel - type ONU product is a GPON terminal product designed to meet the needs of the enterprise network market.
Based on mature and stable, cost - effective Gigabit GPON technology, it integrates Gigabit Ethernet switching technology and voice technology, and has the characteristics of high bandwidth, high reliability, easy management and good quality of service (QoS) guarantee.
The technical performance of the device meets the requirements of the ITU G.984 equipment technical specification, and it has good compatibility when used with mainstream manufacturer OLT equipment.
  • GPON Terminal (Panel-type ONU) -- GPU860-2G0F0P
  • GPON Terminal (Panel-type ONU) -- GPU860-2G0F0P
  • GPON Terminal (Panel-type ONU) -- GPU860-2G0F0P

Description

Product Features

  • Elegant Appearance Design: It complies with the standard 86 - type box, adopts an existing buckle and card - pressing installation method, has good heat dissipation characteristics, high port density, and a dust - proof function at the bottom, which can effectively protect the pigtails and extend the service life of optical fiber connectors and optical cables.
  • Excellent Access Performance: Supports downstream 2.5Gbps and upstream 1.25Gbps PON line rates. Combined with OLT equipment, it can achieve up to 1:128 splitting ratio, and the network coverage radius can reach 20KM, reflecting the high bandwidth of PON channels, high user access volume, and longer access distance.
  • Refined Service Control Capability: Supports 802.1p/QoS function to achieve fine - grained bandwidth control of different service flows, and all users share the bandwidth resources. With QoS function, reliable service quality can be achieved, and different service priorities and service bandwidths in the network can be guaranteed.
  • Rich OAM Functions: Supports the standard OMCI and extended OMCI defined by China Telecom CT/1.3, including configuration, management, performance monitoring, fault management and security management.
  • Perfect Interconnection Function: The product meets the new requirements of China Telecom CT/1.3 and can easily realize interconnection with standard OLT devices of mainstream manufacturers in the industry, and mixed networking minimizes network construction costs.

Product Performance

Item GPU860-2G0F0P
PON Port Receiver Sensitivity: <- 28dBm
Transmit Optical Power: 0 ~+4dBm
Transmission Distance: 20KM
Wavelength: Transmit 1310nm, Receive 1490nm
Optical Interface: SC/UPC Connector
LAN Port Quantity: 2×GE
Rate: 10/100/1000Mbps adaptive Ethernet port, RJ45 connector
POTS Port Quantity: /
Type: FXS, RJ11, supports G.711/G.723/G.726/G.729, supports T.30/T.38/G
Working Environment Temperature: - 30℃ - +70℃
Humidity: 10% - 90% (non - condensing)
Power Supply Working Voltage: AC 100 - 240V, 50/60Hz
Power Consumption: ≤8W
Size (L×W) 86mm×86mm
Weight <300g

Order Information

Product Model Product Description Unit
GPU860-2G0F0P GPON ONU, panel type, 1 GPON port, 2 GE Gigabit Ethernet ports, built-in 220V AC power supply Set


Functional Positioning for Enterprise Network Deployments
The GPU860 panel-type ONU serves as a critical GPON terminal solution tailored for enterprise-level network infrastructures. It is engineered to integrate Gigabit Ethernet switching and voice interfaces, supporting business users requiring high bandwidth and consistent quality of service. As a product from established panel ONU manufacturers, it targets network architects and system integrators focused on scalable, reliable access network terminals. Its compact 86-type form factor and install flexibility allow deployment in racks or desktops within enterprise environments, ensuring compatibility with established optical line terminal (OLT) systems commonly used by panel ONU suppliers.
Advanced Technical Architecture and Specifications
Compliant with ITU G.984 GPON standards, the GPU860 features a single GPON port supporting downstream rates up to 2.5 Gbps and upstream rates of 1.25 Gbps, which enables a maximum 1:128 optical splitting ratio. The device incorporates two Gigabit Ethernet ports and supports 802.1p priority and QoS mechanisms for granular bandwidth management. Key technical specifications include SC/UPC optical interface, receiver sensitivity better than -28 dBm, and operational temperature from -30°C to +70°C. Additionally, the device integrates standard OMCI management and CT/1.3 extensions for secure provisioning and network interoperability compatible with various OLT brands distributed by panel ONU wholesale and panel ONU factory channels.
Industry Applications and Operational Value
This panel ONU is well-suited for enterprise campus networks, office buildings, and similar scenarios where reliable fiber access with extensive reach is required. Its ability to operate over distances up to 20 km with larger splitting ratios facilitates dense user access without compromising signal integrity. The GPU860's interoperable design simplifies integration into existing GPON architectures, reducing deployment costs and operational complexity for network operators procuring from panel ONU suppliers. It also supports voice and data services simultaneously, making it ideal for unified communications infrastructure in corporate environments demanding service quality differentiation and efficient bandwidth utilization.


Product Advantages
Structural and System Design Benefits
The GPU860 panel ONU features an elegant and compact 86-type enclosure designed with effective heat dissipation and a dust-proof bottom plate that protects fiber pigtails, significantly enhancing system durability. Its modular design supports easy integration into rack-mounted or desktop setups, facilitating maintenance and upgrades for enterprise network engineers sourcing from panel ONU manufacturers. Furthermore, its standard optical interface and broad compatibility with mainstream OLT equipment reflect a design philosophy prioritizing interoperability and seamless network expansion, advantageous for procurement processes involving panel ONU wholesale and panel ONU factory sources.
Performance Efficiency and User-Centric Features
From a performance perspective, the GPU860 ensures high reliability and low power consumption (≤8W), suitable for diverse operating conditions ranging from -30°C to 70°C, which address the environmental demands of enterprise deployments. Its dual Gigabit Ethernet ports readily handle simultaneous data and voice traffic, while support for 802.1p/QoS enables fine-grained network traffic prioritization, empowering network administrators to manage bandwidth allocation effectively. The built-in management protocols facilitate remote provisioning and monitoring, reducing operational overhead and enhancing user value for enterprises engaging with panel ONU suppliers for standardized networking components.


Use Scenarios
Enterprise Campus Network Integration
In enterprise campus environments, the GPU860 panel ONU acts as a key access device delivering fiber-optic connectivity to user endpoints. Its conformance to ITU GPON standards and compatibility with mainstream OLT equipment ensure smooth interoperability within complex campus infrastructures. The device supports extended coverage up to 20 km with a 1:128 splitting ratio, enabling cost-effective network extension while maintaining signal quality. Its robust QoS mechanisms help meet diverse service requirements including voice, video, and data traffic, integrating effectively into existing OSS/NMS systems for streamlined management. This makes it an ideal choice for network teams working alongside panel ONU manufacturers to implement high-capacity, future-proof enterprise fiber networks.
Voice and Data Enablement in Office Buildings
Within office building deployments, the GPU860 panel ONU facilitates converged voice and data services essential for modern communications. Equipped with two GE ports and voice FXS interfaces that support multiple codecs and fax protocols, it accommodates unified communication solutions while maintaining high-speed GPON data flows. Its resilience to temperature extremes and low power operation ensure reliable performance across varied facility environments. Integration with standard OLT devices reduces complexity in provisioning and maintenance, and its compact design fits well into dense telecommunications closets often provisioned via panel ONU wholesale or obtained directly from panel ONU supplier channels, enabling efficient network rollout with streamlined vendor coordination.


FAQ
What is the typical installation environment for the GPON terminal panel-type ONU GPU860-2G0F0P?
The GPU860-2G0F0P operates within -30°C to 70°C and 10%-90% non-condensing humidity, suitable for diverse enterprise environments. Its 86-type compact design with heat dissipation and dust-proof features makes it ideal for rack or desktop installation in demanding network setups.

Can the GPU860-2G0F0P be customized for specific enterprise network requirements?

As a standard product from a leading panel ONU manufacturer, the GPU860-2G0F0P supports flexible deployment with two GE ports and 1 GPON port. For tailored configurations or volume requirements, contact Yuhong’s sales or technical teams to discuss custom plans aligned with your enterprise network needs.

How does the GPU860-2G0F0P ensure compatibility with existing GPON networks?

This panel ONU complies with ITU G.984 standards and supports interoperability with mainstream OLT devices, reducing deployment complexity and costs. Standard OMCI and CT/1.3 extensions enable comprehensive management, security, and seamless integration into enterprise GPON architectures.

What logistics and power requirements should buyers consider for the GPU860-2G0F0P?

The device weighs under 300g and measures 86mm × 86mm, facilitating easy transport and installation. It requires a built-in 220V AC power supply, supporting 100-240V, 50/60Hz inputs, and consumes ≤8W, ensuring efficient and stable operation in enterprise network environments.
