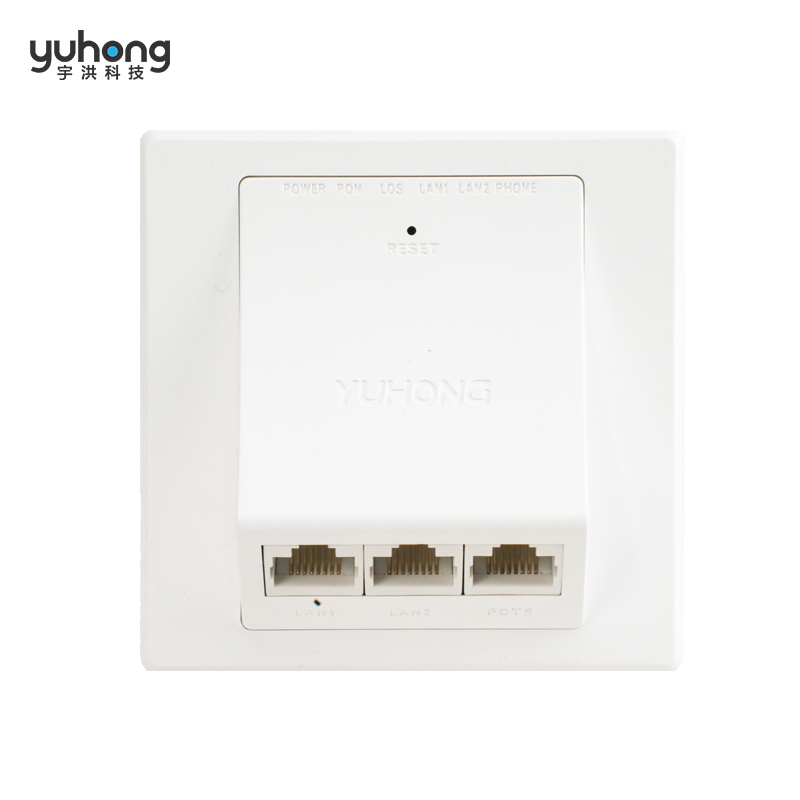

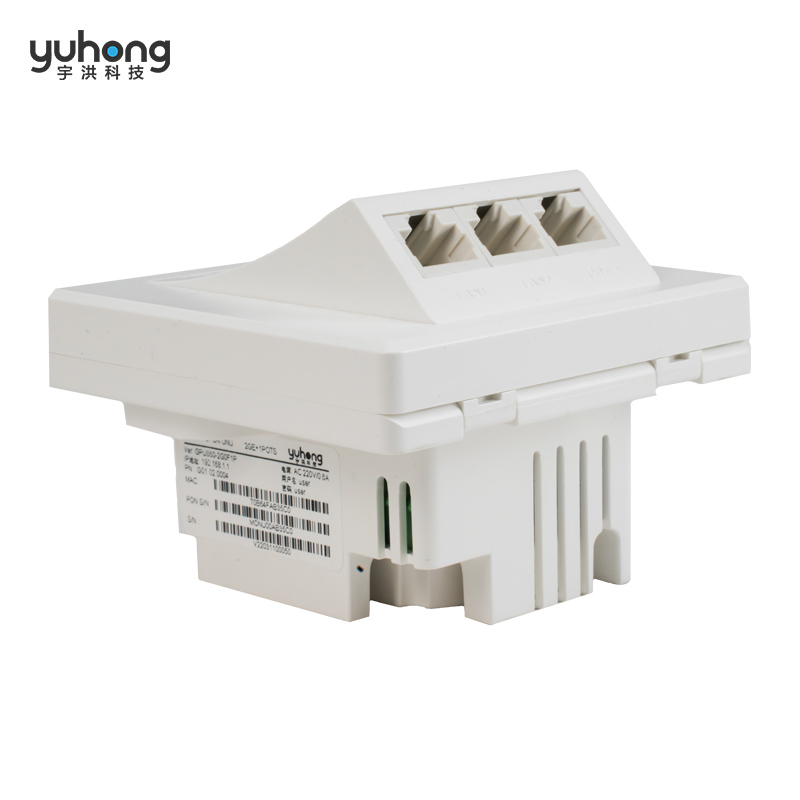

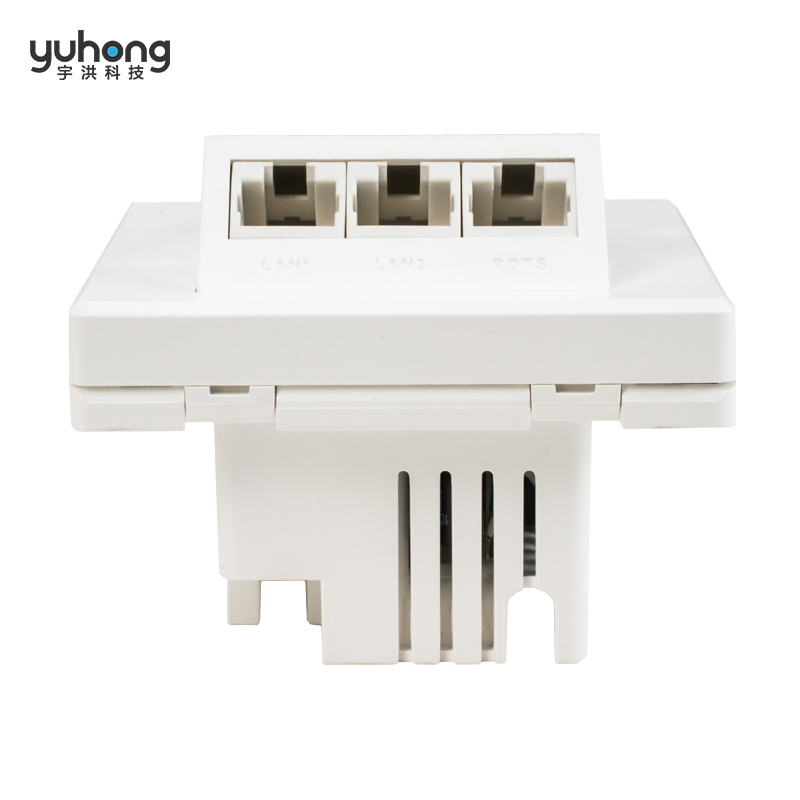

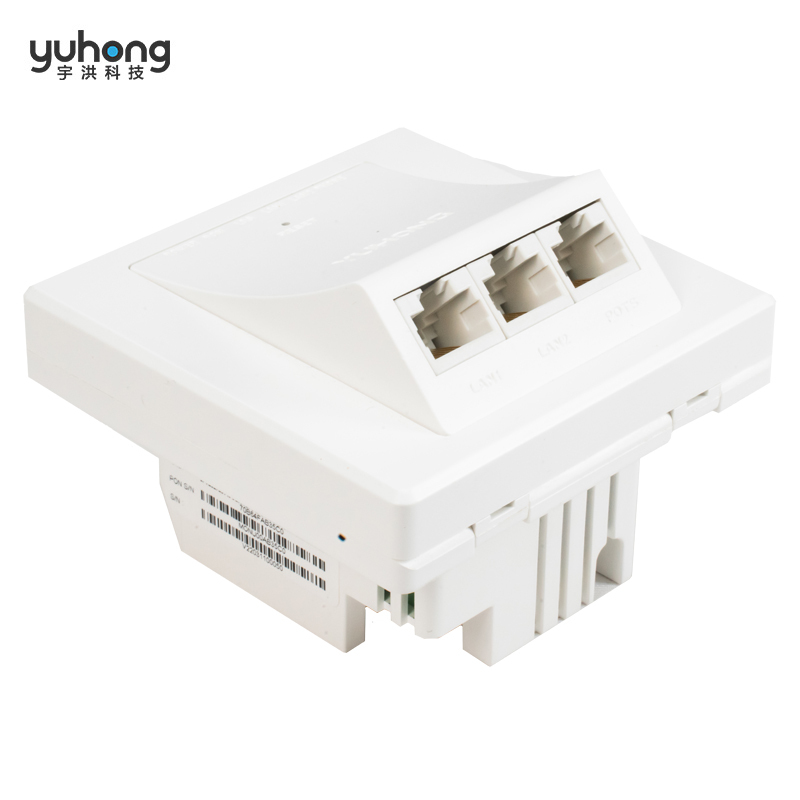

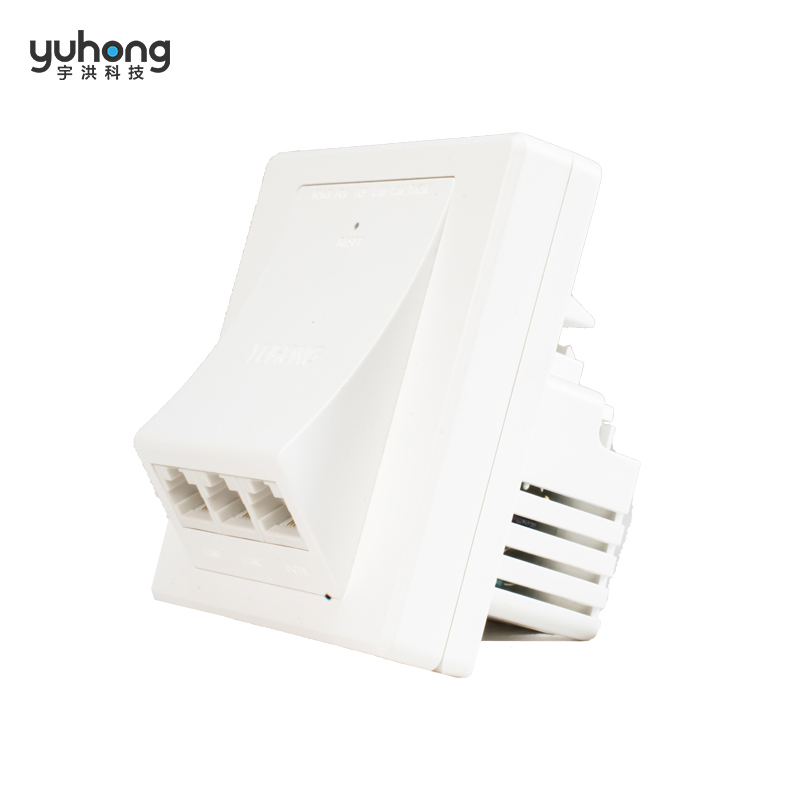

Name: GPON Terminal (Panel-type ONU) -- GPU860-2G0F1P
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Features

Elegant Appearance Design: It complies with the standard 86 - type box, adopts an existing buckle and card - pressing installation method, has good heat dissipation characteristics, high port density, and a dust - proof function at the bottom, which can effectively protect the pigtails and extend the service life of optical fiber connectors and optical cables.
Excellent Access Performance: Supports downstream 2.5Gbps and upstream 1.25Gbps PON line rates. Combined with OLT equipment, it can achieve up to 1:128 splitting ratio, and the network coverage radius can reach 20KM, reflecting the high bandwidth of PON channels, high user access volume, and longer access distance.
Refined Service Control Capability: Supports 802.1p/QoS function to achieve fine - grained bandwidth control of different service flows, and all users share the bandwidth resources. With QoS function, reliable service quality can be achieved, and different service priorities and service bandwidths in the network can be guaranteed.
Rich OAM Functions: Supports the standard OMCI and extended OMCI defined by China Telecom CT/1.3, including configuration, management, performance monitoring, fault management and security management.
Perfect Interconnection Function: The product meets the new requirements of China Telecom CT/1.3 and can easily realize interconnection with standard OLT devices of mainstream manufacturers in the industry, and mixed networking minimizes network construction costs.

Product Performance

Item	GPU860 - 1G0F0P
PON Port	Receiver Sensitivity: <- 28dBm Transmit Optical Power: 0 ~+4dBm Transmission Distance: 20KM Wavelength: Transmit 1310nm, Receive 1490nm Optical Interface: SC/UPC Connector
LAN Port	Quantity: 2×GE Rate: 10/100/1000Mbps adaptive Ethernet port, RJ45 connector
POTS Port	Quantity: 1×FXS 2×FXS Type: FXS, RJ11, supports G.711/G.723/G.726/G.729, supports T.30/T.38/G
Working Environment	Temperature: - 30℃ - +70℃ Humidity: 10% - 90% (non - condensing)
Power Supply	Working Voltage: AC 100 - 240V, 50/60Hz Power Consumption: ≤15W
Size (L×W)	86mm×86mm
Weight	<300g

Order Information

Product Model	Product Description	Unit
GPU860-2G0F1P	GPON ONU, panel type, 1 GPON port, 2 GE Gigabit Ethernet ports, 1 POTS traditional telephone port, built-in 220V AC power supply	Set

Enterprise-Grade Network Access for Professional Deployment
The GPU860 panel ONU targets enterprise network providers and system integrators requiring compact, high-efficiency GPON terminals. This solution is engineered to meet the demands of business campuses, remote branch offices, and managed communication environments. As a product from reputable panel ONU manufacturers, it is tailored for seamless integration with standard OLT equipment while supporting voice and data simultaneously through its 1 GPON port, 2 Gigabit Ethernet ports, and 1 POTS port. The panel ONU factory design ensures optimal protection of fiber connections and extends cable longevity, aligning with professional infrastructure reliability standards.
Advanced Technical Architecture and Certified Specifications
Built on industry-standard ITU G.984 GPON protocols, this panel ONU supplier product delivers up to 2.5 Gbps downstream and 1.25 Gbps upstream bandwidth with a 20 km reach and up to 1:128 split ratio. Featuring 802.1p-based QoS for traffic prioritization and OMCI for flexible configuration and monitoring, the GPU860 also integrates a dust-resistant 86-type panel form factor designed for heat dissipation and high port density. Its built-in AC power system supports 100-240V inputs, with power consumption under 15W, demonstrating efficiency while maintaining consistent optical performance. Such accurate technical features facilitate dependable network operation across enterprise environments.
Versatile Applications Elevating Network Infrastructure Efficiency
This panel ONU wholesale solution excels across diverse enterprise scenarios including fiber access extension in branch offices, centralized voice service deployment, and campus-wide connectivity upgrading. Its interoperability with mainstream OLTs enables unified optical network management, simplifying system scaling and maintenance. The compact panel design allows for discrete installation within telecom rooms or integrated network closets, satisfying strict space constraints common in enterprise environments. By delivering stable service assurance and bandwidth control, it enhances operational ROI and network resilience across demanding telecommunication infrastructures.

Product Advantages
Robust Structural and Modular Design Principles
The GPU860 is engineered as a compact panel ONU, providing an 86-type panel enclosure that maximizes port density while prioritizing ease of installation and maintenance. Rigorously developed in line with certified panel ONU factory standards, it features enhanced heat dissipation and protective dust ingress safeguards which extend fiber pigtail lifespan. Its modular construction enables seamless pairing with various optical line terminal (OLT) devices, supported by standard-compliant connectors and interfaces sanctioned by panel ONU manufacturers. This structural reliability supports scalable deployments in professional network settings requiring minimal operational disruptions or hardware adaptations.
Optimized Performance with Streamlined Usability
As a panel ONU supplier, the GPU860 model balances high network throughput with user-centric management capabilities. It supports 802.1p/QoS for prioritized bandwidth allocation, ensuring voice and data services remain uninterrupted under load. Its low power consumption and integrated AC power supply reduce operational costs in enterprise facilities while maintaining steady performance metrics. Network administrators benefit from OMCI-enabled remote configuration and monitoring, facilitating efficient troubleshooting and service-level adjustments. This usability focus enhances system lifecycle value, meets rigorous enterprise expectations, and supports diverse application demands without complexity.

Use Scenarios
Enterprise Campus Fiber Access Expansion
In office campus environments, this panel ONU supplier product serves as a pivotal component for extending fiber connectivity to departmental subnets and remote offices. Within these settings, it integrates directly with central OLT nodes to deliver high-capacity, reliable GPON services, delivering bandwidth up to 2.5 Gbps downstream. Its compact panel ONU form factor fits seamlessly into telecom racks or wall-mounted enclosures, adhering to network design standards while minimizing space occupation. The ONU’s QoS capabilities ensure voice and data priorities necessary in enterprise workflows, complying with industry-grade ITU standards, and enabling centralized network management across an expanding infrastructure footprint.
Voice and Data Integration in Distributed Branch Networks
For businesses operating multiple small branch sites, this panel ONU wholesale solution provides a consolidated fiber access point incorporating both Ethernet and legacy POTS voice services. It enables cost-effective voice integration without additional gateway devices, ensuring continuity of critical telephony during network upgrades. The ONU’s built-in 220V AC power supply supports standard electrical input ranges, simplifying site deployment logistics. Within distributed network environments, it ensures compliance with established optical interface specifications and facilitates interoperability with varied OLT manufacturers. Consequently, it reliably supports business continuity and aligned network topology with manageable overhead.

FAQ
What ports are included on the GPU860-2G0F1P panel ONU?
The GPU860-2G0F1P offers a panel ONU configuration featuring 1 GPON port, 2 Gigabit Ethernet (GE) ports, and 1 POTS (FXS) port. This combination supports voice services and high-speed data connectivity in a compact 86-type panel form factor, suitable for enterprise environments requiring versatile connection options.

Can the GPU860-2G0F1P panel ONU be customized for different enterprise needs?
As a product from a major panel ONU manufacturer, customization options may be available to meet specific network requirements. Contact the supplier directly to discuss configuration adjustments, firmware settings, or integration with various OLT devices to optimize deployment for your enterprise setup.

What installation considerations are recommended for this panel ONU?
The GPU860-2G0F1P is designed for panel mounting in network distribution frames or racks. Ensure proper ventilation around the 86-type enclosure to maintain heat dissipation. The device includes dust protection for optical interfaces, which helps extend cable life in typical enterprise environments. Consult the manual for detailed mounting instructions.

How does the GPU860-2G0F1P address network reliability and maintenance?
This panel ONU supports OMCI and extended OMCI protocols for remote configuration, monitoring, and management, enabling efficient maintenance and troubleshooting. Its robust design, including heat dissipation and dust protection, improves longevity and reduces downtime in enterprise network deployments, facilitating stable and reliable connectivity.
