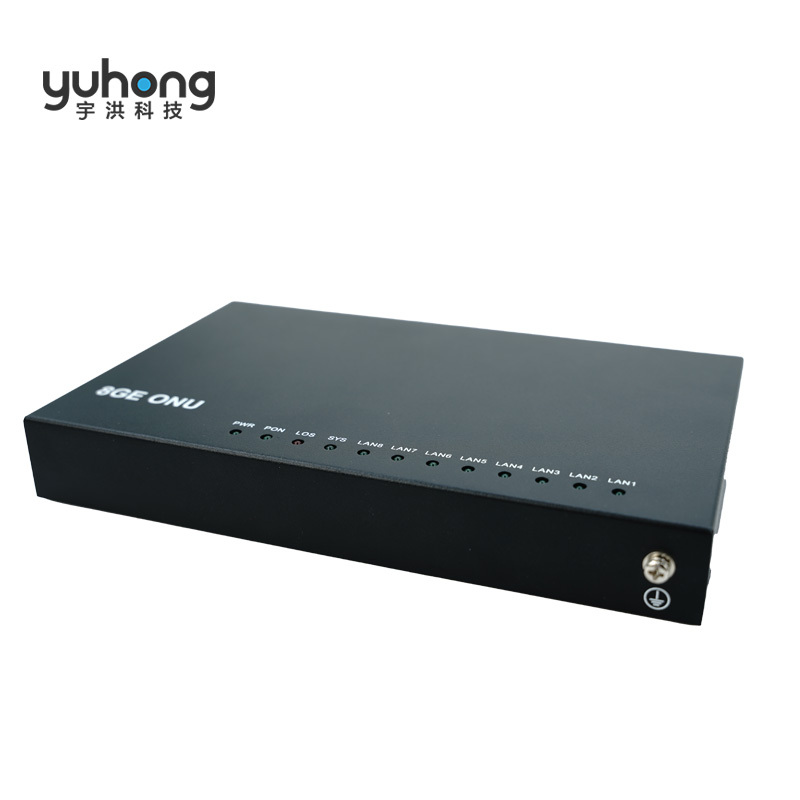

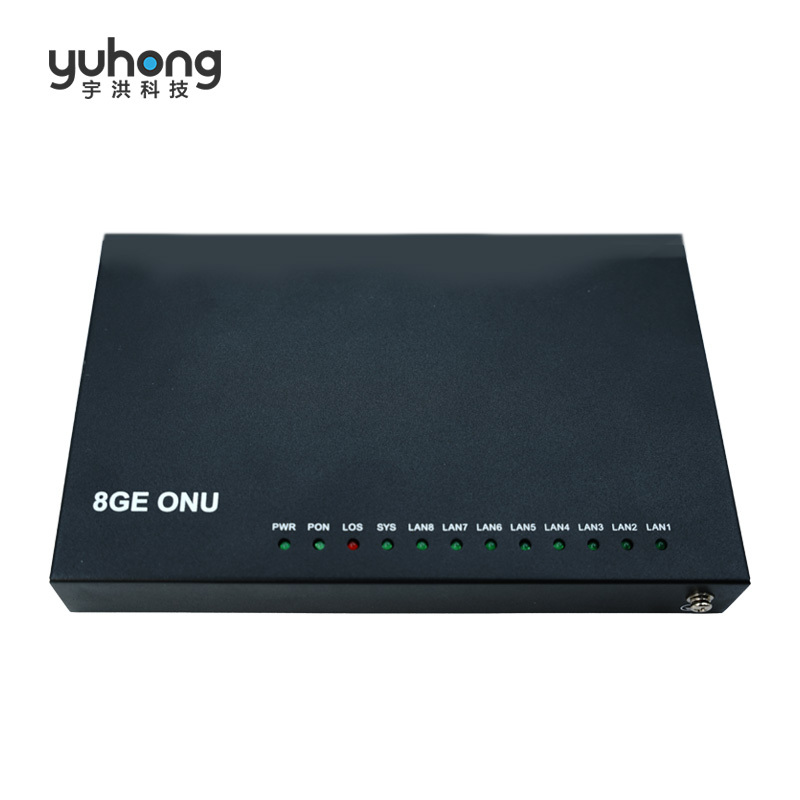

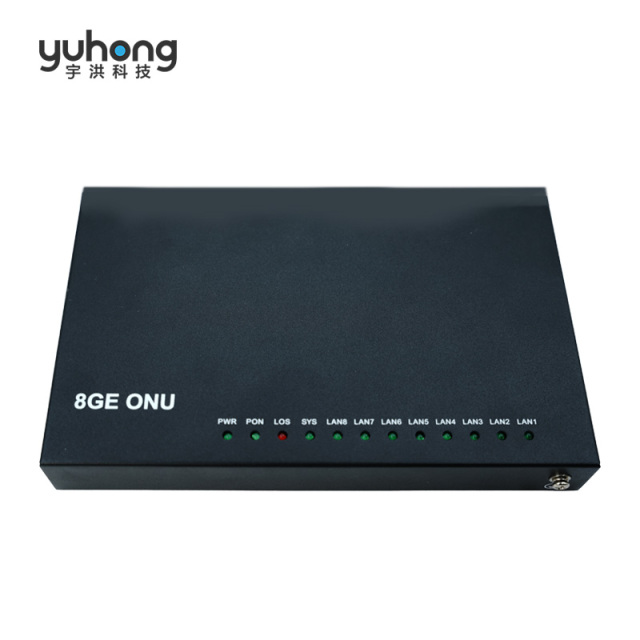

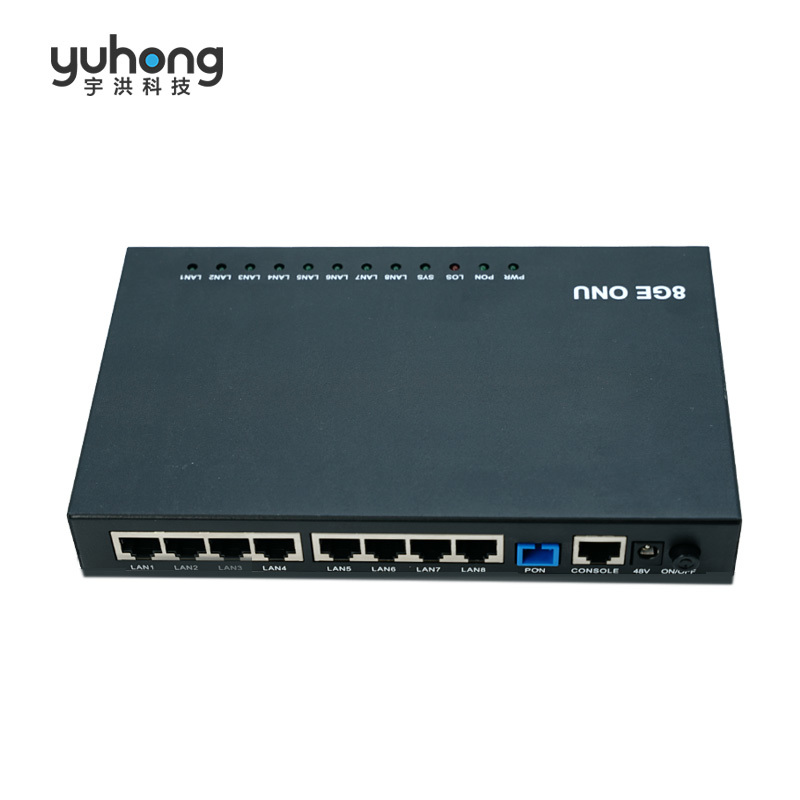

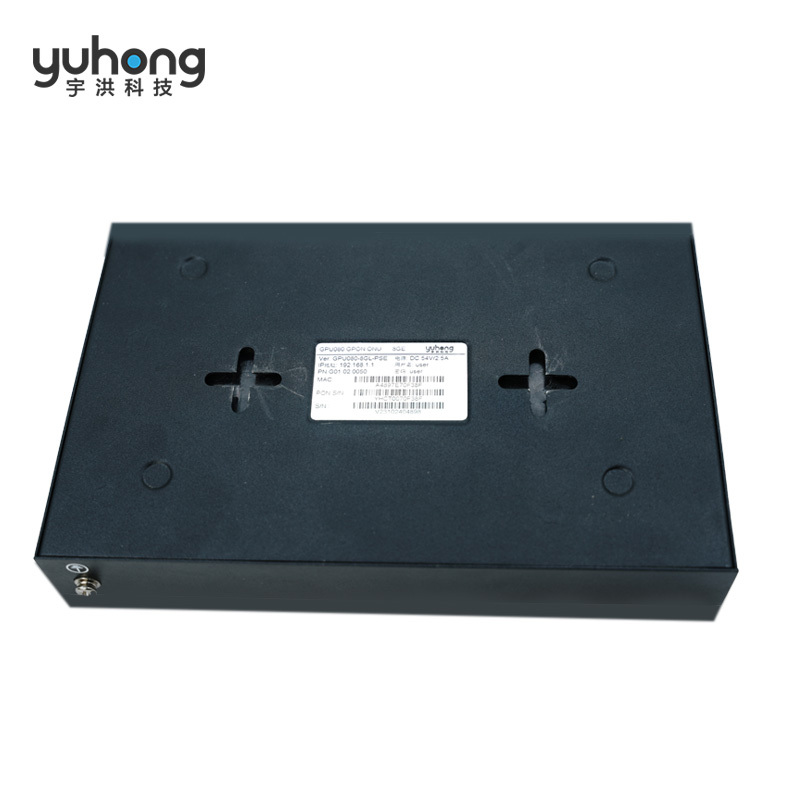

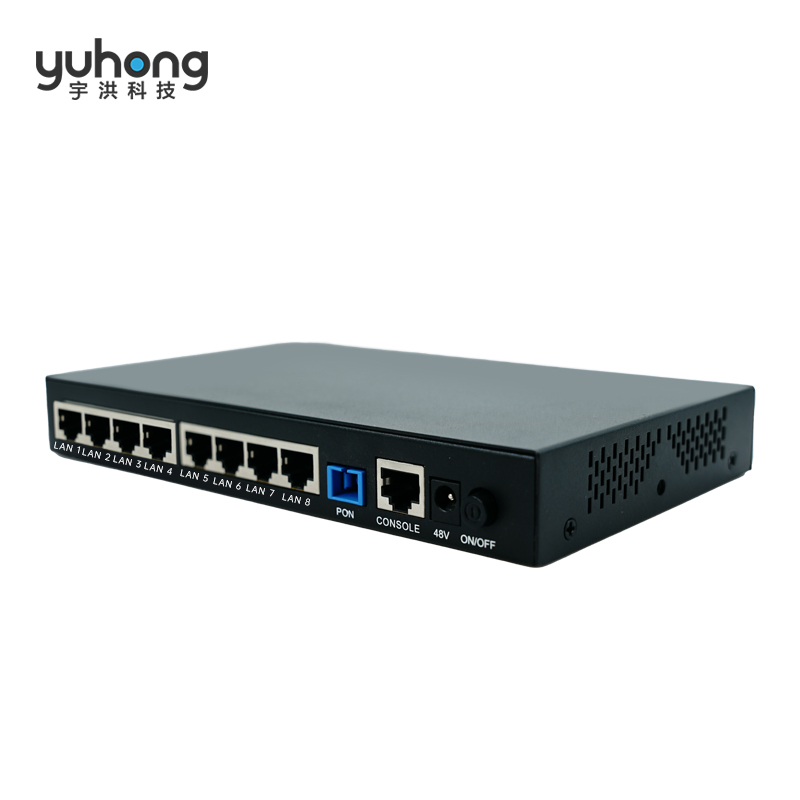

Name: GPU080-8GL
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Features

Excellent Access Performance: Supports downstream 2.5Gbps and upstream 1.25Gbps PON line rates. Combined with OLT equipment, it can achieve up to 1:128 splitting ratio, and the network coverage radius can reach 20KM, reflecting the high bandwidth of PON channels, high user access volume, and longer access distance.
Refined Service Control Capability: Supports 802.1p/QoS function to achieve fine - grained bandwidth control of different service flows, and all users share the bandwidth resources. With QoS function, reliable service quality can be achieved, and different service priorities and service bandwidths in the network can be guaranteed.
Rich OAM Functions: Supports the standard OMCI and extended OMCI defined by China Telecom CT/1.3, including configuration, management, performance monitoring, fault management and security management.
Perfect Interconnection Function: The product meets the new requirements of China Telecom CT/1.3 and can easily realize interconnection with standard OLT devices of mainstream manufacturers in the industry, and mixed networking minimizes network construction costs.
Supports IEEE 802.3af/at Standard Power Supply (POE Type): Meets the IEEE 802.3af/at technical specification requirements, providing 3.84 - 25.5W power for PD devices, which can meet the power requirements of 5 Class levels.

Product Performance

Item	GPU080 - 8GL
PON Port	Receiver Sensitivity: <- 28dBm Transmit Optical Power: 0 - 4dBm Transmission Distance: 20KM Wavelength: Transmit 1310nm, Receive 1490nm Optical Interface: SC/UPC Connector
LAN Port	Quantity: 8×GE Rate: GE: 10/100/1000Mbps adaptive Ethernet port, RJ45 connector
Working Environment	Working Voltage: DC 12V/1.5A, external power adapter Power Consumption: 18W (without POE power supply), ≤130W (with POE power supply)
Size (L×W×H)	205mm×125mm×28mm
Weight	<600g

Order Information

Product Model	Product Description	Color	Unit
GPU080 - 8GL	GPON ONU, iron shell: 1×GPON port, 8×GE Gigabit ports, external power adapter	White	Set

Targeted Enterprise Access Solution for Business Networks
The GPU080-8GL functions as a high-performance GPON Terminal designed specifically for enterprise network environments. It serves IT managers, network engineers, and procurement teams seeking scalable fiber-based access combined with comprehensive LAN connectivity. With integration of eight Gigabit Ethernet ports and compatibility with major OLT equipment, this device enables simplified network architecture and supports diversified deployment needs in campus or multi-tenant infrastructures. As a product from reputable GPON Terminal manufacturers, it aligns with industry requirements for robust scale and management in commercial settings.
Precision Engineering with Advanced GPON Specifications
Equipped with a single GPON port compliant with ITU G.984 standards, the GPU080-8GL supports downstream bandwidth of up to 2.5 Gbps and upstream capacity of 1.25 Gbps. Its reach extends to 20 kilometers with a high split ratio of 1:128, ensuring extensive fiber coverage within enterprise campuses or distributed sites. The device integrates QoS capabilities under IEEE 802.1p, enabling traffic prioritization for mission-critical applications. Management protocols adhere to OMCI standards, facilitating seamless administration and monitoring. Additionally, the unit supports IEEE 802.3af/at PoE, capable of powering connected devices with output ranging from 3.84 to 25.5 watts, ensuring effective convergence of data and power delivery.
Application-Driven Benefits in Enterprise and Campus Networks
The GPU080-8GL is designed to optimize fiber access in complex enterprise network topologies including multi-tenant buildings, educational campuses, and corporate headquarter environments. Its compatibility with multiple OLT vendors reduces integration complexity and lowers overall installation costs. The inclusion of eight GE Ethernet ports supports a broad range of end devices such as VoIP phones, surveillance cameras, and wireless APs. QoS features ensure prioritized bandwidth allocation for multimedia and data-intensive services, maintaining network efficiency. This solution addresses growing demand for scalable, secure, and manageable GPON Terminals suited to rigorous business continuity and IT operational standards.

Product Advantages
Modular Design and Professional Systems Integration
The GPU080-8GL offers a compact and modular design optimized for enterprise GPON Terminal deployments. Lightweight and space-efficient, it integrates a PoE-enabled Gigabit Ethernet switch and a single GPON fiber interface within one chassis. Its adherence to ITU and industry OMCI standards enables interoperability with diverse OLT platforms, allowing flexible network architecture expansion. The external DC 12 V power supply simplifies installation logistics. As a product supplied by recognized GPON Terminal manufacturers and factories, it ensures component quality and consistent manufacturing standards critical for network infrastructure longevity.
Enhanced Network Performance and Operational Efficiency
Performance-wise, the GPU080-8GL delivers robust throughput suitable for demanding enterprise applications, supported by QoS traffic prioritization and dual-direction GPON transmission rates. Its PoE capability optimizes deployments by reducing cabling complexity for powered devices. The device’s management through standard OMCI protocols facilitates proactive fault monitoring and configuration, streamlining operational processes. By consolidating data and power distribution, this GPON Terminal from a trusted supplier increases network reliability while providing administrators with granular control over service flows and bandwidth allocation.

Use Scenarios
Campus Network Fiber Access Expansion
In university or corporate campuses where high-density connectivity is required across multiple buildings, the GPU080-8GL functions as a key GPON Terminal enabling fiber-to-the-building deployments. It extends high-speed optical access up to 20 km from the OLT, supporting extensive coverage with a 1:128 split ratio. The device powers and connects diverse end devices at each site via its eight Gigabit Ethernet ports, leveraging IEEE 802.3af/at PoE to simplify infrastructure. Its standard OMCI compliance allows centralized management integration, improving fault detection and bandwidth allocation in complex campus network environments necessitating scalable and reliable solutions from GPON Terminal wholesale and factory providers.
Multitenant Building Network Infrastructure Integration
Within multi-tenant commercial or residential buildings requiring robust high-speed internet and private LAN segments, the GPU080-8GL serves as a versatile GPON Terminal enabling scalable user aggregation. Its compatibility with various OLT equipment ensures flexible deployment in mixed-vendor scenarios common in property developments. The device’s support for QoS prioritization enables customized service quality for diverse tenants’ bandwidth needs. PoE support facilitates powering IP cameras and access points, improving security and wireless coverage. This integration enhances network operability and adaptability, catering to complex tenant requirements and optimizing ROI for GPON Terminal suppliers and enterprise network integrators.

FAQ
What key features distinguish the GPU080-8GL as a reliable GPON Terminal for enterprise use?
The GPU080-8GL offers eight Gigabit Ethernet ports, supports ITU G.984 compliance, and integrates IEEE 802.3af/at PoE. Its compatibility with mainstream OLTs and QoS support ensure stable bandwidth, making it a trusted GPON Terminal for enterprise networks requiring scalability and reliability.

Can the GPU080-8GL be customized to fit specific enterprise network requirements?
As a product from a professional GPON Terminal manufacturer, the GPU080-8GL supports standard OMCI and CT/1.3 extended OMCI for flexible management. While hardware features are standardized, its interoperability with various OLTs allows tailored deployments within mixed network environments.

What is involved in the installation and deployment of the GPU080-8GL?
The GPU080-8GL requires connection to a single GPON fiber and power supply via DC 12V/1.5A. Its compact design and RJ45 LAN ports facilitate straightforward integration into enterprise LANs. Proper configuration of QoS and OMCI management ensures optimal performance in complex network setups.

How does Guangzhou Yuhong Technology handle logistics and supply for bulk orders of the GPU080-8GL?
As an experienced GPON Terminal supplier and factory, Guangzhou Yuhong Technology manages inventory and distribution with efficiency to support wholesale and large-scale deployments. Buyers can request custom quotes and consult directly for supply chain details and delivery scheduling.
