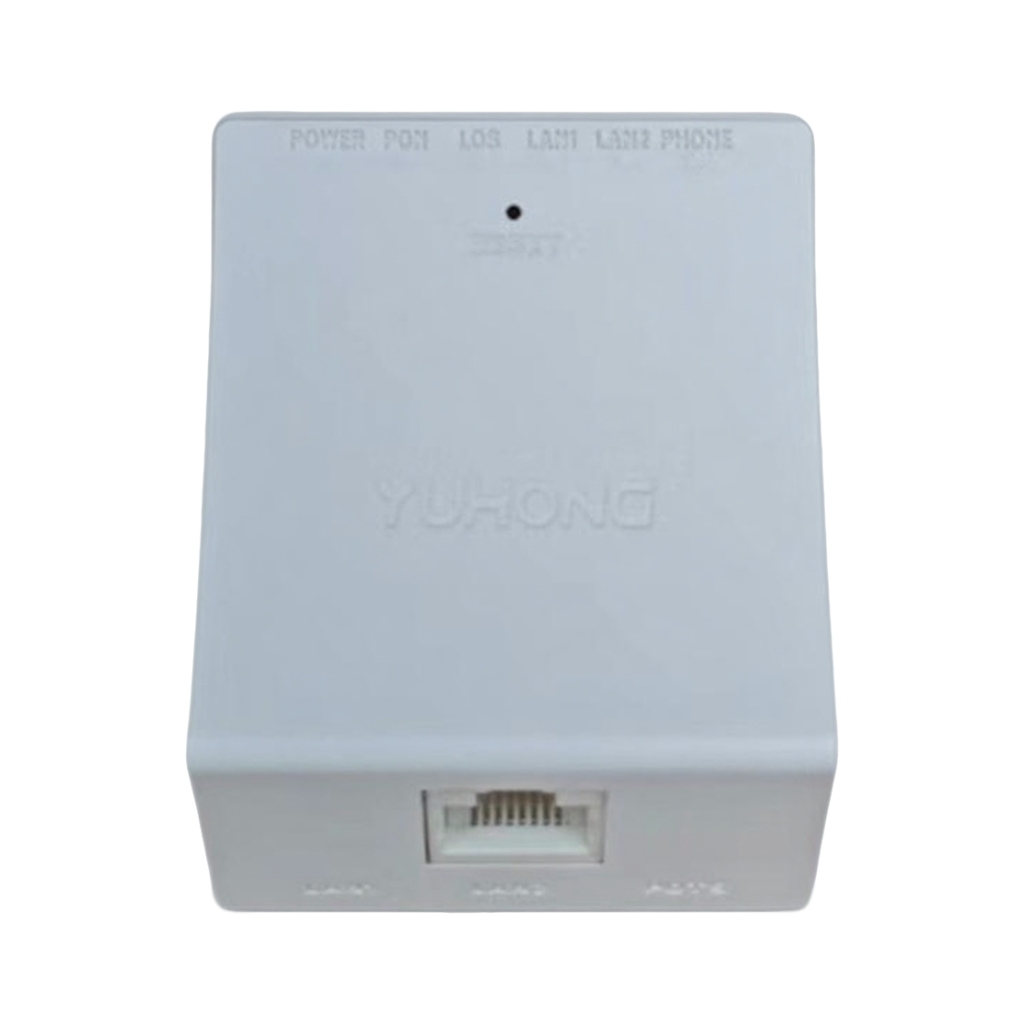

Name: GPU860-1G0F0P
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Features

Elegant Appearance Design: It complies with the standard 86 - type box, adopts an existing buckle and card - pressing installation method, has good heat dissipation characteristics, high port density, and a dust - proof function at the bottom, which can effectively protect the pigtails and extend the service life of optical fiber connectors and optical cables.
Excellent Access Performance: Supports downstream 2.5Gbps and upstream 1.25Gbps PON line rates. Combined with OLT equipment, it can achieve up to 1:128 splitting ratio, and the network coverage radius can reach 20KM, reflecting the high bandwidth of PON channels, high user access volume, and longer access distance.
Refined Service Control Capability: Supports 802.1p/QoS function to achieve fine - grained bandwidth control of different service flows, and all users share the bandwidth resources. With QoS function, reliable service quality can be achieved, and different service priorities and service bandwidths in the network can be guaranteed.
Rich OAM Functions: Supports the standard OMCI and extended OMCI defined by China Telecom CT/1.3, including configuration, management, performance monitoring, fault management and security management.
Perfect Interconnection Function: The product meets the new requirements of China Telecom CT/1.3 and can easily realize interconnection with standard OLT devices of mainstream manufacturers in the industry, and mixed networking minimizes network construction costs.

Product Performance

Item	GPU860 - 1G0F0P
PON Port	Receiver Sensitivity: <- 28dBm Transmit Optical Power: 0 - 4dBm Transmission Distance: 20KM Wavelength: Transmit 1310nm, Receive 1490nm Optical Interface: SC/UPC Connector
LAN Port	Quantity: 1×GE Rate: 10/100/1000Mbps adaptive Ethernet port, RJ45 connector
POTS Port	Quantity: / Type: /
Working Environment	Temperature: - 30℃ - +70℃ Humidity: 10% - 90% (non - condensing)
Power Supply	Working Voltage: AC 100 - 240V, 50/60Hz Power Consumption: ≤8W
Size (L×W)	86mm×86mm
Weight	<300g

Order Information

Product Model	Product Description	Unit
GPU860 - 1G0F0P	GPON ONU, panel type: 1×GPON port, 1×GE Gigabit port, built - in AC 220V power supply	Set

Targeted Enterprise GPON Access Solution
The GPU860-1G0F0P serves as a panel ONU terminal optimized for deployment in enterprise network environments requiring high-density, reliable GPON access. Its compact 86mm × 86mm panel housing facilitates installation in standard 86-type enclosures, fitting neatly into existing infrastructure. Designed primarily for network operators, integrators, and IT engineers, this device delivers fiber access connectivity with an integrated 1 GE Ethernet port to accommodate end-user or LAN equipment interfaces. The product targets applications where space-saving form factors and interoperability with mainstream OLT hardware from various panel ONU suppliers are critical for scalable deployment strategies.
Reliable Technical Specifications for Efficient Networking
Equipped with one GPON port supporting downstream rates up to 2.5 Gbps and upstream rates reaching 1.25 Gbps, the GPU860-1G0F0P enables robust data transmission capabilities. It supports a splitting ratio up to 1:128 and an operational distance of 20 km, ensuring broad coverage suitable for medium to large enterprise sites. QoS (802.1p) is integrated for traffic prioritization, enhancing service quality management. Compatibility with OMCI and CT/1.3 protocols guarantees seamless management and interoperability, vital for unified network control. Its power consumption is minimal at ≤8W, while the compact design offers effective heat dissipation conforming to enterprise operational standards typical of products provided by leading panel ONU manufacturers.
Industry-Grade Versatility and Cost-Efficiency
This panel ONU model is engineered to meet the stringent requirements of enterprise GPON deployments, including multi-vendor interoperability crucial for cost-optimized network expansions. It facilitates straightforward interconnection with OLT equipment in diverse vendor ecosystems, minimizing the total cost of ownership by reducing deployment complexity. The device is suited for scenarios demanding scalable and manageable fiber access nodes with high reliability, such as campus networks, business complexes, and multi-tenant buildings. Its design supports streamlined network construction workflows, making it an effective choice for system integrators sourcing from trusted panel ONU wholesale suppliers aiming to balance performance and budget constraints.

Product Advantages
Structural and Design Efficiency in a Compact Panel Format
The GPU860-1G0F0P features a standardized 86-type panel enclosure developed to optimize space utilization within wall-mounted or rack-based access points. The buckle and card-press installation method simplifies field deployment and maintenance, enabling rapid integration into existing infrastructure environments managed by panel ONU wholesale providers. Its panel design achieves reliable heat dissipation despite its compact dimensions, enhancing hardware stability. High port density within a minimal footprint allows multiple units to be installed efficiently. The adherence to standard form factors facilitates compatibility with a broad range of structured cabling systems and ensures adaptability across various enterprise deployment topologies.
Performance-driven Networking with Seamless Usability
This model delivers industry-grade GPON performance with downstream speeds of 2.5 Gbps and upstream speeds of 1.25 Gbps, suitable for bandwidth-intensive enterprise applications. QoS support through IEEE 802.1p enhances traffic differentiation, ensuring optimal service delivery for voice, video, and data streams. Its interoperability with OMCI and CT/1.3 protocols provides ease of management for network operators, reducing operational overhead and streamlining fault monitoring. Powered by built-in AC supply circuitry, the panel ONU ensures consistent power stability aligning with enterprise power standards. The product optimizes user experience for network engineers and IT administrators procuring from reliable panel ONU factory sources by combining performance, manageability, and form factor efficiency.

Use Scenarios
Enterprise Network Integration for Campus Fiber Access
In modern enterprise campus environments, the GPU860-1G0F0P serves as an essential GPON ONU device that terminates fiber optic lines within standard 86-type panel enclosures. It integrates seamlessly into multi-building fiber distribution architectures, providing reliable broadband access to office users and network devices through its 1 GE Ethernet port. The device’s compliance with CT/1.3 and OMCI protocols ensures compatibility across diverse OLT vendor equipment, which is critical for large-scale enterprise deployments requiring hardened interoperability. Its technical specification to support a 1:128 splitting ratio enables cost-efficient fiber resource utilization, facilitating scalable network designs for IT infrastructure teams sourcing from established panel ONU manufacturers or suppliers.
Cost-Effective Network Deployment in Mixed-Vendor Environments
This panel ONU is designed to minimize network construction expenses by supporting straightforward interconnection with mainstream OLT devices widely used in enterprise and service provider infrastructures. Its compatibility with standard management protocols and ability to operate efficiently with various OLT types allow system integrators to avoid vendor lock-in, mitigating risk in heterogeneous network deployments. The compact form factor reduces physical footprint and associated cabling complexity, accelerating installation cycles. Additionally, energy-efficient design contributes to reduced operational expenditure. This makes the GPU860-1G0F0P a strategic choice for enterprises and communication service providers who collaborate with panel ONU factory sources to deploy scalable, high-performance GPON access solutions.

FAQ
What are the main features of the GPU860-1G0F0P panel ONU?
The GPU860-1G0F0P is a compact panel ONU with 1 GPON port and 1 GE RJ45 port, supporting downstream rates of 2.5 Gbps and upstream rates of 1.25 Gbps. Its 86 mm × 86 mm form factor ensures easy installation in standard enclosures. This panel ONU offers QoS support and compatibility with mainstream OLT devices for enterprise network use.

Can the GPU860-1G0F0P be customized for specific enterprise requirements?
While the GPU860-1G0F0P is a standardized product designed for enterprise networks, customization requests may be handled on a case-by-case basis. As a leading panel ONU manufacturer, Guangzhou Yuhong Technology can provide technical consultation for tailored solutions to meet specific project demands.

How is the GPU860-1G0F0P installed and maintained in enterprise environments?
The panel ONU installs easily in a standard 86-type box with a buckle and card-press method, providing secure mounting and effective heat dissipation. Maintenance involves monitoring via OMCI management protocols and ensuring stable AC power supply, minimizing downtime and supporting reliable GPON access performance.

What logistics and support services does Guangzhou Yuhong Technology provide for panel ONU wholesale orders?
As a trusted panel ONU supplier, Guangzhou Yuhong Technology offers streamlined order processing and technical support for wholesale clients. The company ensures compliance with shipping standards and provides after-sale assistance to optimize installation and interoperability within mixed-vendor GPON networks.
