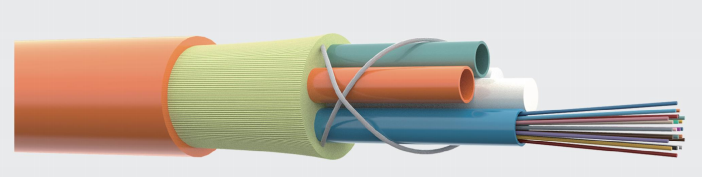

Indoor Loose Sheath Stranded Fibre Optic Cable GDX211, FRNC/LSOH 24F~144F

Product Application

Indoor optical cables are constructed by placing colored optical fiber cores within loose tubes, followed by the uniform release of multiple strands of aramid fibers for reinforcement, and finally extruding a flame-retardant outer sheath to effectively protect the optical fibers from external forces. By selecting high-quality optical fibers, utilizing specialized equipment, and employing reasonable process design, the product's performance exceeds the requirements of international standards such as ISO/IEC 11801. The product features high-quality performance, with performance metrics exceeding the requirements of standards such as ANSI/TIA-568.3-D, IEC 60794, and YD/T 1258.4; the optical fiber characteristics meet and exceed the requirements of standards such as ITU-T G.561, ITU-T G.652.D, and IEC 60793.
  • Indoor Loose Sheath Stranded Fibre Optic Cable GDX211, FRNC/LSOH 24F~144F

Description

Product Features

The use of aramid fiber reinforcement ensures that the optical fiber remains free of tensile strain after installation, thereby guaranteeing the stability of signal transmission; the central non-metallic reinforcement meets the tensile strength requirements of the optical cable, making it suitable for long-distance installation;
The optical cable is lightweight and easy to install, making it particularly suitable for use indoors with grid-type or ladder-type cable trays; the outer sheath is made of LSOH (Low Smoke Zero Halogen), which has excellent flame-retardant and environmentally friendly properties, ensuring the safety of personnel and the environment.

Product Performance

  • Allowable Tensile Force: Long - term: 400N; Short - term: 1320N
  • Allowable Crush Force: Long - term: 300N/100mm; Short - term: 1000N/100mm
  • Bending Radius: Dynamic: 20×D(Optical cable diameter); Static: 10×D
  • Ambient Temperature: - 20℃ - +60℃ (storage, transportation, use); - 05℃ - +50℃ (installation)
  • Flame Retardant Performance:                                                                                                              Halogen content:GB/T 17650.1,GB/T 17650.2,IEC 60754-1/-2
    Flame spread:GB/T 18380.12,IEC 60332-1
    Smoke density:GB/T 17651,IEC 61034-1/-2

Order Information

Product Model Product Description Core Count Color Unit
GDX211-B1dZL-xx GDX211 Single-mode indoor loose tube layer twisted optical cable, G.652.D xx cores, FRNC/LS0H outer sheath 24~144core Yellow 1KM/box
GDX211-0M2ZL-xx GDX211 Multimode Indoor Loose Tube Layer-Twisted Optical Cable, OM2xx Core, FRNC/LS0H Outer Sheath 24~144core Orange 1KM/box
GDX211-0M3ZL-xx GDX211 Multimode Indoor Loose Tube Layer-Twisted Optical Cable, OM3 xx Core, FRNC/LS0H Outer Sheath 24~144core Aqua green 1KM/box
GDX211-0M4ZL-xx GDX211 Multimode Indoor Loose Tube Layer-Twisted Optical Cable, OM4xx Core, FRNC/LSOH Outer Sheath 24~144core Purple 1KM/box

FR/PVC = Flame Retardant/Polyvinyl Chloride IEC 60332-1
