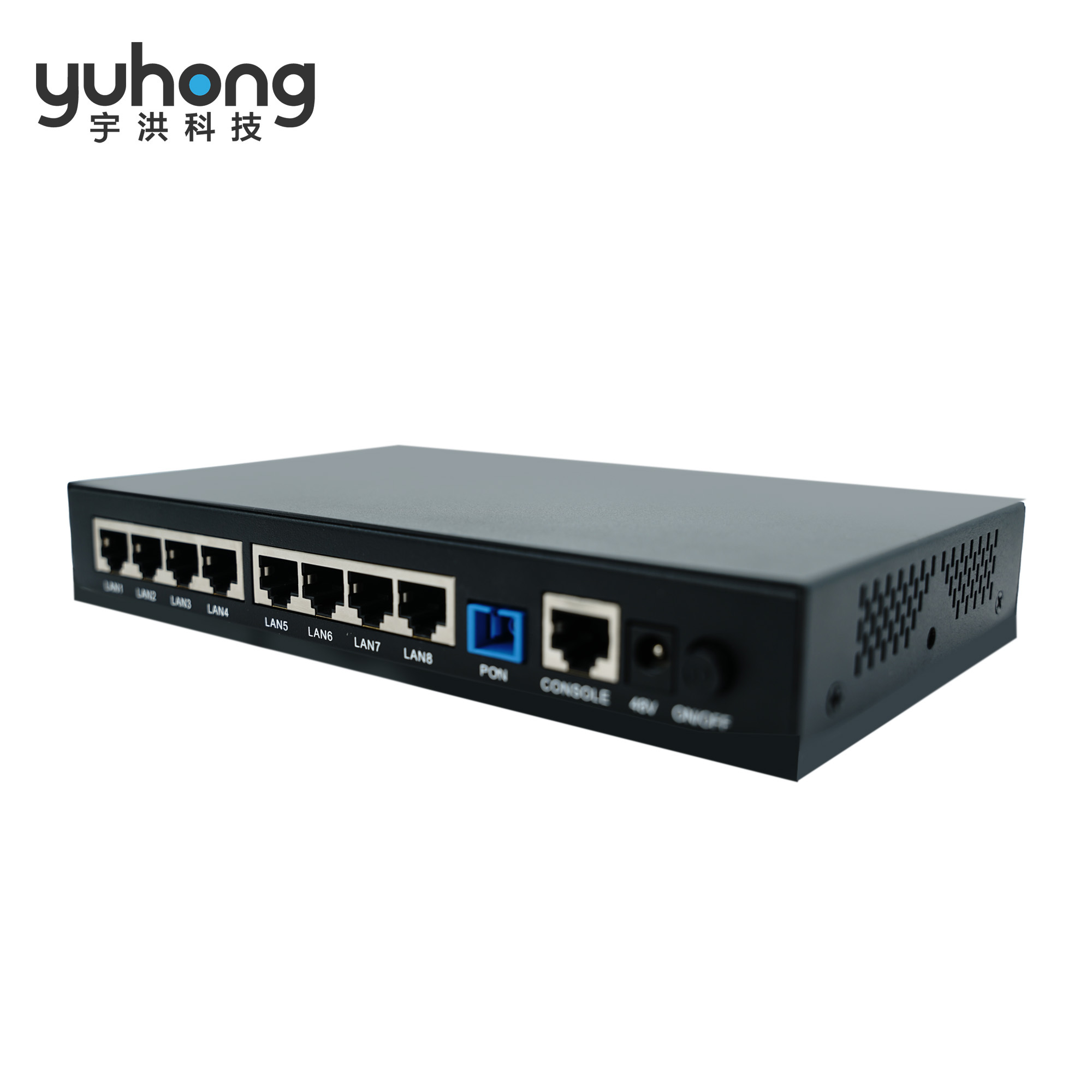

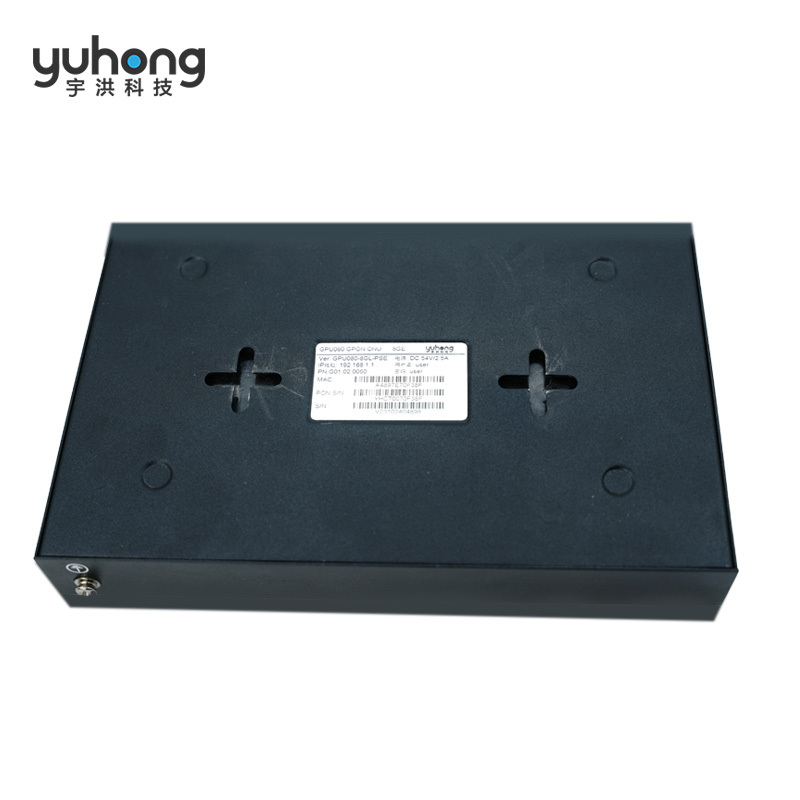

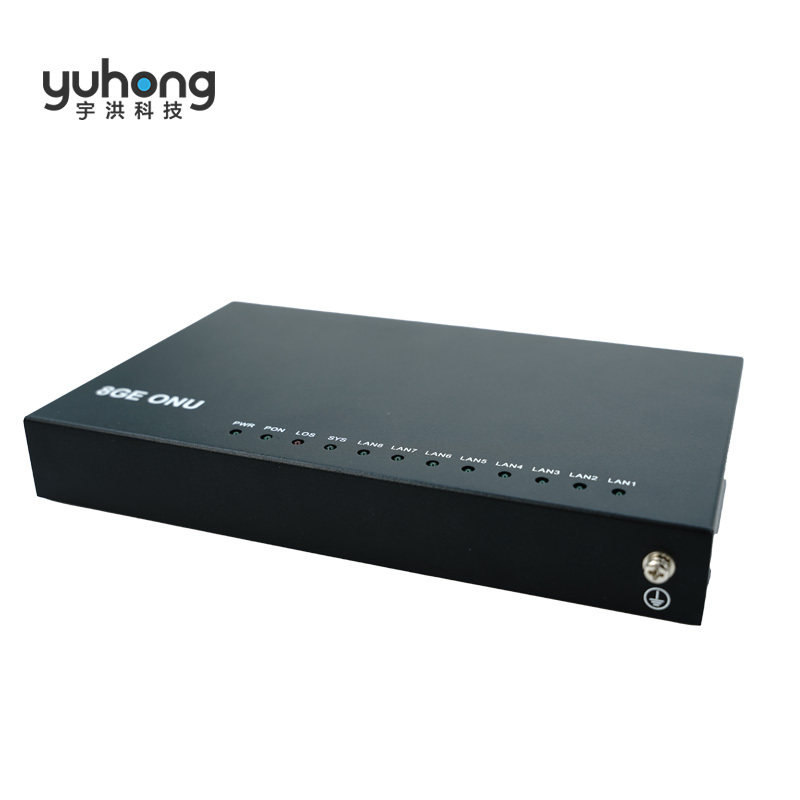

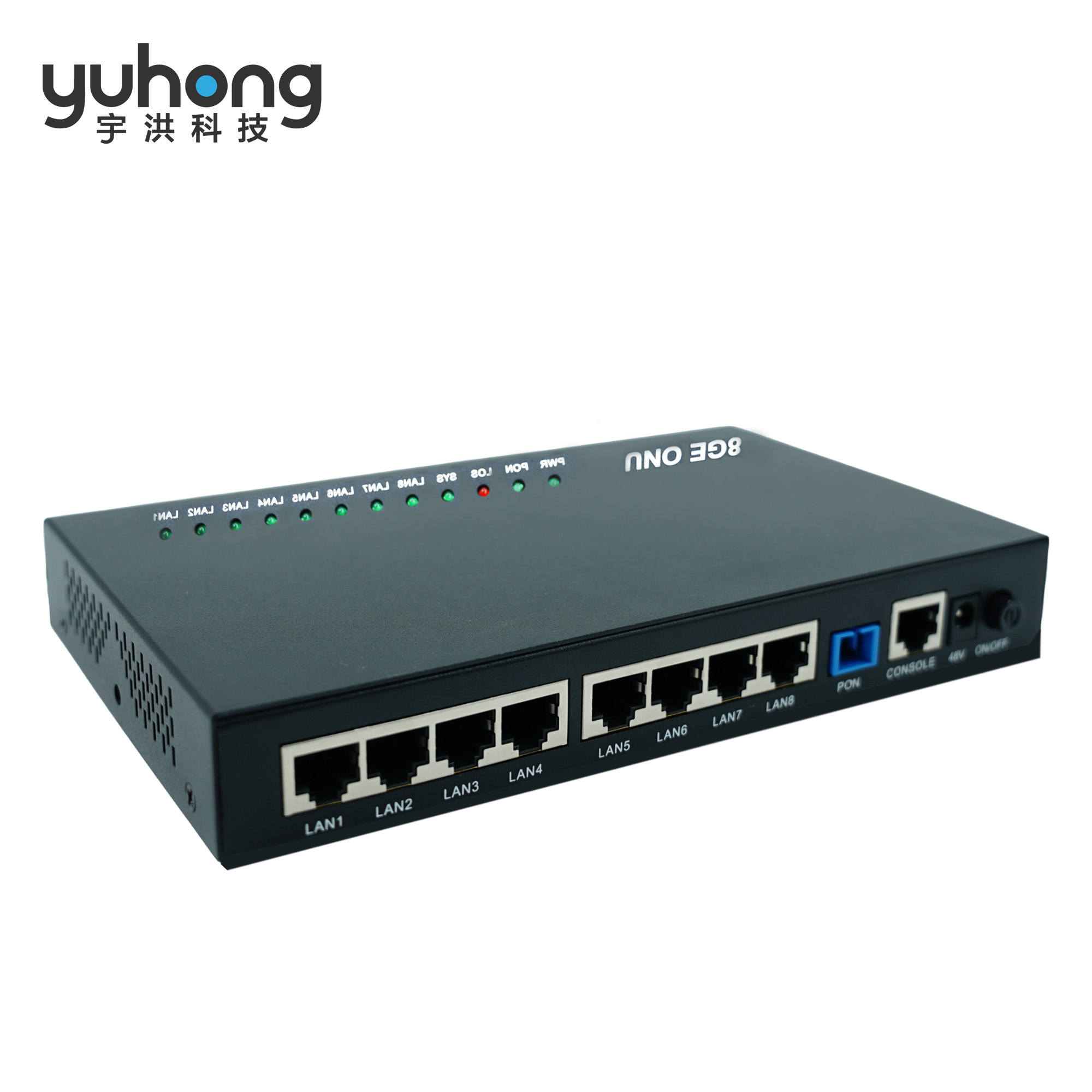

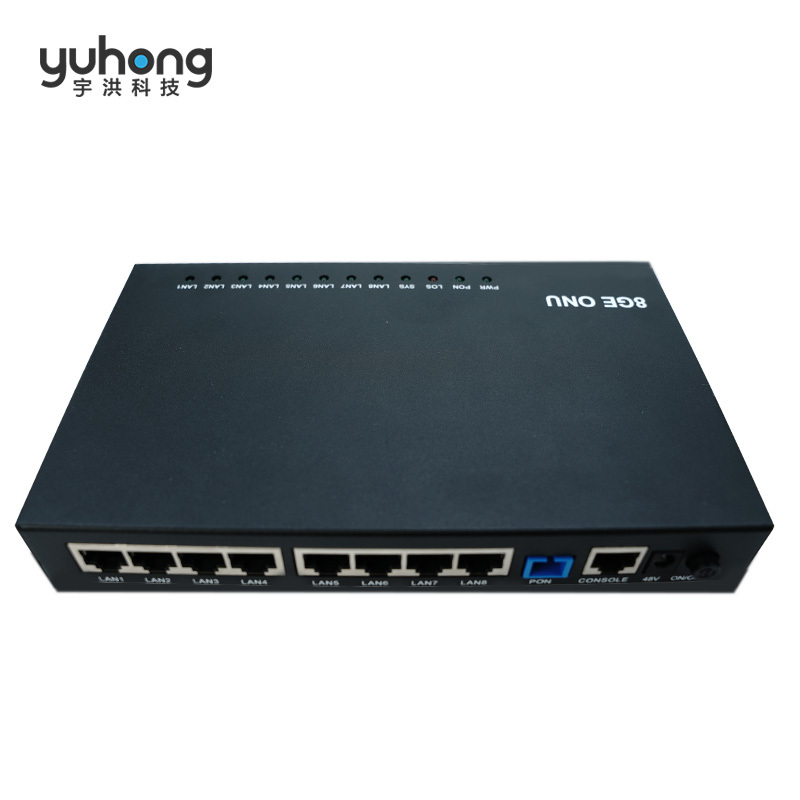

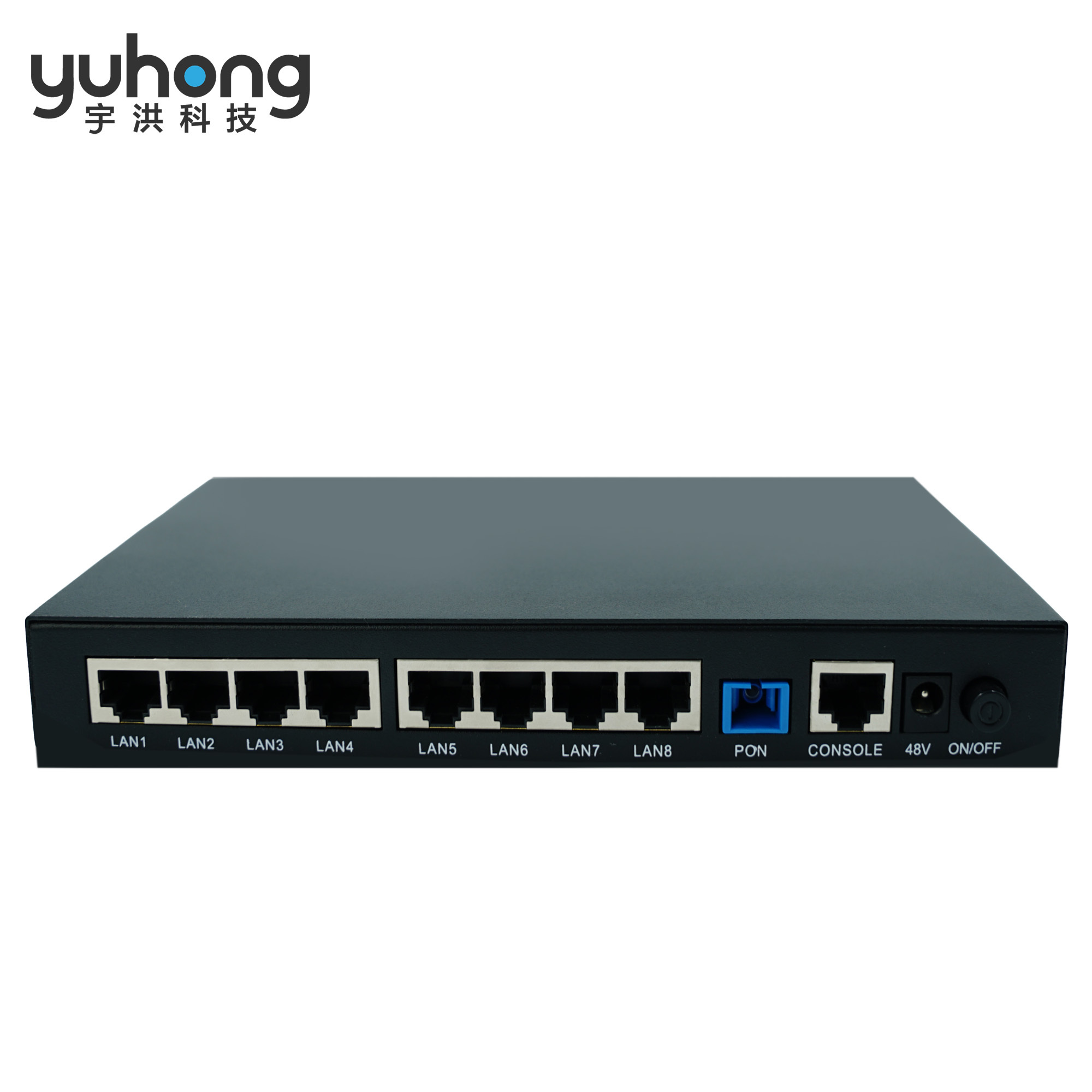

Name: Iron Shell 8GE GPON Terminal ONU (Eight Network Port Data Type ONU)--GPU080-8GL-PSE
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Features

Excellent Access Performance: Supports downstream 2.5Gbps and upstream 1.25Gbps PON line rates. Combined with OLT equipment, it can achieve up to 1:128 splitting ratio, and the network coverage radius can reach 20KM, reflecting the high bandwidth of PON channels, high user access volume, and longer access distance.
Refined Service Control Capability: Supports 802.1p/QoS function to achieve fine - grained bandwidth control of different service flows, and all users share the bandwidth resources. With QoS function, reliable service quality can be achieved, and different service priorities and service bandwidths in the network can be guaranteed.
Rich OAM Functions: Supports the standard OMCI and extended OMCI defined by China Telecom CT/1.3, including configuration, management, performance monitoring, fault management and security management.
Perfect Interconnection Function: The product meets the new requirements of China Telecom CT/1.3 and can easily realize interconnection with standard OLT devices of mainstream manufacturers in the industry, and mixed networking minimizes network construction costs.
Supports IEEE 802.3af/at Standard Power Supply (POE Type): Meets the IEEE 802.3af/at technical specification requirements, providing 3.84 - 25.5W power for PD devices, which can meet the power requirements of 5 Class levels.

Product Performance

Item	GPU080 - 8GL-PSE
PON Port	Receiver Sensitivity: <- 28dBm Transmit Optical Power: 0 - 4dBm Transmission Distance: 20KM Wavelength: Transmit 1310nm, Receive 1490nm Optical Interface: SC/UPC Connector
LAN Port	Quantity: 8×GE（POE）） Rate: GE: 10/100/1000Mbps adaptive Ethernet port, RJ45 connector
Working Environment	Working Voltage: DC 48V/2.5A, external power adapter Power Consumption: 18W (without POE power supply), ≤130W (with POE power supply)
Size (L×W×H)	205mm×125mm×28mm
Weight	<600g

Order Information

Product Model	Product Description	Color	Unit
GPU080-8GL-PSE	GPON ONU, metal shell, 1 GPON port, 8 GE Gigabit Ethernet ports with POE functionality, external power adapter	White	Set

Targeted Enterprise Network Access Solution
The GPU080-8GL-PSE serves as a specialized GPON Terminal designed for enterprise networks requiring robust bandwidth and device power capabilities. With its 8 Gigabit Ethernet ports featuring PoE compliance, the device supports seamless connection of IP cameras, VoIP phones, and wireless access points. Its design targets network integrators and enterprises that demand manageable QoS, centralized control, and interoperability with mainstream OLT equipment. This product from a reputable GPON Terminal supplier meets the connectivity needs of multi-building campuses and high-density user environments with efficiency and reliability.
Technical Specifications Ensuring Robust Network Performance
Built to comply with ITU G.984, this GPON Terminal factory product supports downstream speeds of up to 2.5 Gbps and upstream rates up to 1.25 Gbps, with an extensive transmission radius of 20 km and a split ratio as high as 1:128. Incorporating 802.1p/QoS mechanisms, OMCI/CT 1.3 management compatibility, and IEEE 802.3af/at PoE standards, the unit enables granular bandwidth prioritization and remote device management. The device features a compact metal shell form factor, uses a DC 48V/2.5A power adapter, and adapts flexibly within existing GPON infrastructure supplied by trusted GPON Terminal manufacturers.
Industry Deployment and Integration Benefits
This GPON Terminal wholesale product is optimal for deployment in enterprise, campus, and multi-dwelling unit networks where power over Ethernet support and long-reach fiber connectivity are crucial. It enables cost-effective network expansion without compromising service quality, offering direct integration with various OLT vendors. The ONU facilitates efficient fiber resource utilization through high split ratios, meeting stringent bandwidth and power demands across multiple access points. As a solution from a knowledgeable GPON Terminal supplier, it delivers practical value in environments requiring scalable, manageable, and interoperable GPON access terminals.

Product Advantages
System Design and Modular Integration Strengths
The GPU080-8GL-PSE embodies design choices that emphasize modular connectivity and environmental resilience, with its iron shell housing offering enhanced protection and durability. As a GPON Terminal factory product, it integrates 8 PoE-enabled Gigabit Ethernet ports within a compact footprint, streamlining installation in space-constrained environments. Compliance with ITU standards and common management protocols facilitates seamless integration into diverse network architectures, reducing complexity for system architects relying on a reliable GPON Terminal supplier. The comprehensive feature set simplifies network scalability, supporting separation and extension of fiber access points across large areas efficiently.
Performance Capabilities and Operational Value
This ONU combines high throughput capabilities with user-focused operational reliability, delivering downstream rates up to 2.5 Gbps and peak PoE power output supporting a range of powered devices. The GPON Terminal wholesale device ensures fine-grained bandwidth management via 802.1p/QoS and provides effective network monitoring through OMCI, enabling administrators to maintain service levels with minimal overhead. Its support for a maximum of 1:128 splitting extends fiber economics while its plug-and-play compatibility reduces configuration times. These performance benefits reflect the advanced engineering standards upheld by leading GPON Terminal manufacturers, maximizing return on investment for network operators.

Use Scenarios
Enterprise Campus Power-over-Ethernet Network Deployment
In enterprise campus environments, this GPON Terminal factory ONU functions as a key network node providing centralized GPON access while delivering PoE to endpoints such as IP telephones and wireless access points. Its ability to support up to 8 powered Ethernet connections reduces the need for separate power infrastructure, improving installation flexibility. The device’s compliance with ITU G.984 standards ensures interoperability with multi-vendor OLTs, facilitating phased network upgrades without vendor lock-in. This seamless integration within existing GPON topologies enables efficient management of traffic, power, and bandwidth, catering to the complex demands of contemporary enterprise networks.
High-Density IP Surveillance Network Integration
Within the surveillance industry, the GPU080-8GL-PSE is well suited for aggregating multiple IP cameras over a single fiber GPON link, with PoE powering cameras at the edge to reduce separate cabling requirements. Its extended transmission distance of up to 20 km and 1:128 split ratio supports expansive monitoring systems across industrial parks or city campuses. The ONU’s network management capabilities, including OMCI and QoS, ensure video stream prioritization and system reliability essential for security applications. Provided by a trusted GPON Terminal supplier, this solution fits seamlessly into layered surveillance architectures where scalability, power delivery, and performance compliance are critical operational factors.

FAQ
What are the core features of the Iron Shell 8GE GPON Terminal ONU GPU080-8GL-PSE?
The GPON Terminal GPU080-8GL-PSE features 8 GE ports with POE, a single GPON port, and supports 2.5 Gbps downstream and 1.25 Gbps upstream. It complies with ITU G.984 and supports up to a 1:128 splitting ratio across 20 km, ensuring high-bandwidth, manageable enterprise network access.

Can the GPU080-8GL-PSE be customized to fit specific enterprise network needs?
As a leading GPON Terminal supplier, Guangzhou Yuhong Technology offers devices designed to integrate with mainstream OLTs and support management protocols like OMCI/CT 1.3. For tailored configurations or specific PoE power requirements, contact our technical team for customization options.

What installation requirements are necessary for the GPU080-8GL-PSE?
This GPON Terminal requires an external DC 48V/2.5A power adapter. It supports SC/UPC optical connectors and is compatible with standard OLT equipment. Proper fiber termination and environmental conditions aligned with industrial standards are necessary to ensure optimal performance.

How does the device support network maintenance and long-term reliability?
The GPU080-8GL-PSE supports OMCI and CT/1.3 protocols for remote configuration and monitoring, enabling efficient network management. Its metal shell design and 802.1p/QoS features ensure durability and prioritized bandwidth, underpinning dependable service continuity and enterprise-grade reliability.
