| Specification | Conductor Structure (mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | Outer Diameter Lower Limit (mm) | Outer Diameter Upper Limit (mm) | Maximum Conductor Resistance at 20℃ (Ω/KM) | Minimum Conductor Insulation Resistance at 70℃ (MΩ/KM) | Reference Current - Carrying Capacity (A) |
|---|---|---|---|---|---|---|---|---|
| 2×1 | 1/1.13 | 0.6 | 1.2 | 7.0 | 8.5 | 18.1 | 0.011 | 11 |
| 3×1 | 1/1.13 | 0.6 | 1.2 | 7.4 | 8.9 | 18.1 | 0.011 | 11 |
| 4×1 | 1/1.13 | 0.6 | 1.2 | 7.9 | 9.6 | 18.1 | 0.011 | 11 |
| 5×1 | 1/1.13 | 0.6 | 1.2 | 8.8 | 10.3 | 18.1 | 0.011 | 11 |
| 6×1 | 1/1.13 | 0.6 | 1.2 | 9.2 | 11.1 | 18.1 | 0.011 | 11 |
| 7×1 | 1/1.13 | 0.6 | 1.2 | 9.2 | 11.1 | 18.1 | 0.011 | 11 |
| 8×1 | 1/1.13 | 0.6 | 1.2 | 10.2 | 12.8 | 18.1 | 0.011 | 11 |
| 10×1 | 1/1.13 | 0.6 | 1.2 | 11.4 | 13.3 | 18.1 | 0.011 | 11 |
| 1×2×1 | 1/1.13 | 0.6 | 1.5 | 11.8 | 14.2 | 18.1 | 0.011 | 11 |
| 2×1.5 | 1/1.38 | 0.7 | 1.2 | 7.9 | 9.5 | 12.1 | 0.011 | 17 |
| 3×1.5 | 1/1.38 | 0.7 | 1.2 | 8.3 | 10.0 | 12.1 | 0.011 | 15 |
| 4×1.5 | 1/1.38 | 0.7 | 1.2 | 9.0 | 10.9 | 12.1 | 0.011 | 17 |
| 5×1.5 | 1/1.38 | 0.7 | 1.2 | 9.7 | 11.7 | 12.1 | 0.011 | 17 |
| 6×1.5 | 1/1.38 | 0.7 | 1.2 | 10.5 | 12.7 | 12.1 | 0.011 | 17 |
| 7×1.5 | 1/1.38 | 0.7 | 1.2 | 10.5 | 12.7 | 12.1 | 0.011 | 17 |
| 8×1.5 | 1/1.38 | 0.7 | 1.5 | 11.7 | 14.1 | 12.1 | 0.011 | 17 |
| 10×1.5 | 1/1.38 | 0.7 | 1.5 | 13.7 | 16.6 | 12.1 | 0.011 | 17 |
| 12×1.5 | 1/1.38 | 0.7 | 1.5 | 14.2 | 17.1 | 12.1 | 0.011 | 17 |
| 2×2.5 | 1/1.78 | 0.8 | 1.2 | 9.0 | 10.9 | 7.4 | 0.01 | 26 |
| 3×2.5 | 1/1.78 | 0.8 | 1.2 | 9.5 | 11.5 | 7.4 | 0.01 | 26 |
| 4×2.5 | 1/1.78 | 0.8 | 1.2 | 10.4 | 12.5 | 7.4 | 0.01 | 26 |
| 5×2.5 | 1/1.78 | 0.8 | 1.2 | 11.2 | 13.6 | 7.4 | 0.01 | 26 |
| 6×2.5 | 1/1.78 | 0.8 | 1.5 | 12.8 | 15.5 | 7.41 | 0.01 | 26 |
| 7×2.5 | 1/1.78 | 0.8 | 1.5 | 12.8 | 15.5 | 7.41 | 0.01 | 26 |
| 8×2.5 | 1/1.78 | 0.8 | 1.5 | 14.3 | 17.2 | 7.41 | 0.01 | 26 |
| 10×2.5 | 1/1.78 | 0.8 | 1.5 | 16.0 | 19.4 | 7.41 | 0.01 | 26 |
| 12×2.5 | 1/1.78 | 0.8 | 1.5 | 16.5 | 20.0 | 7.41 | 0.01 | 26 |
| 2×4 | 1/2.25 | 0.8 | 1.2 | 9.9 | 11.9 | 4.61 | 0.0085 | 35 |
| 3×4 | 1/2.25 | 0.8 | 1.2 | 10.5 | 12.7 | 4.61 | 0.0085 | 35 |
| 4×4 | 1/2.25 | 0.8 | 1.2 | 11.4 | 13.8 | 4.61 | 0.0085 | 35 |
| 5×4 | 1/2.25 | 0.8 | 1.5 | 13.0 | 15.7 | 4.61 | 0.0085 | 35 |
| 6×4 | 1/2.25 | 0.8 | 1.5 | 14.1 | 17.1 | 4.61 | 0.0085 | 35 |
| 7×4 | 1/2.25 | 0.8 | 1.5 | 14.1 | 17.1 | 4.61 | 0.0085 | 35 |
| 8×4 | 1/2.25 | 0.8 | 1.5 | 15.8 | 19.0 | 4.61 | 0.0085 | 35 |
| 2×6 | 1/2.76 | 0.8 | 1.2 | 10.8 | 13.1 | 3.08 | 0.007 | 46 |
| 3×6 | 1/2.76 | 0.8 | 1.2 | 11.5 | 13.9 | 3.08 | 0.007 | 46 |
| 4×6 | 1/2.76 | 0.8 | 1.5 | 13.2 | 15.9 | 3.08 | 0.007 | 46 |
| 5×6 | 1/2.76 | 0.8 | 1.5 | 14.3 | 17.3 | 3.08 | 0.007 | 46 |
| 6×6 | 1/2.76 | 0.8 | 1.5 | 15.6 | 18.8 | 3.08 | 0.007 | 46 |
| 7×6 | 1/2.76 | 0.8 | 1.5 | 15.6 | 18.8 | 3.08 | 0.007 | 46 |
Product Description
Functional Role and Intended Users in Industrial Controls

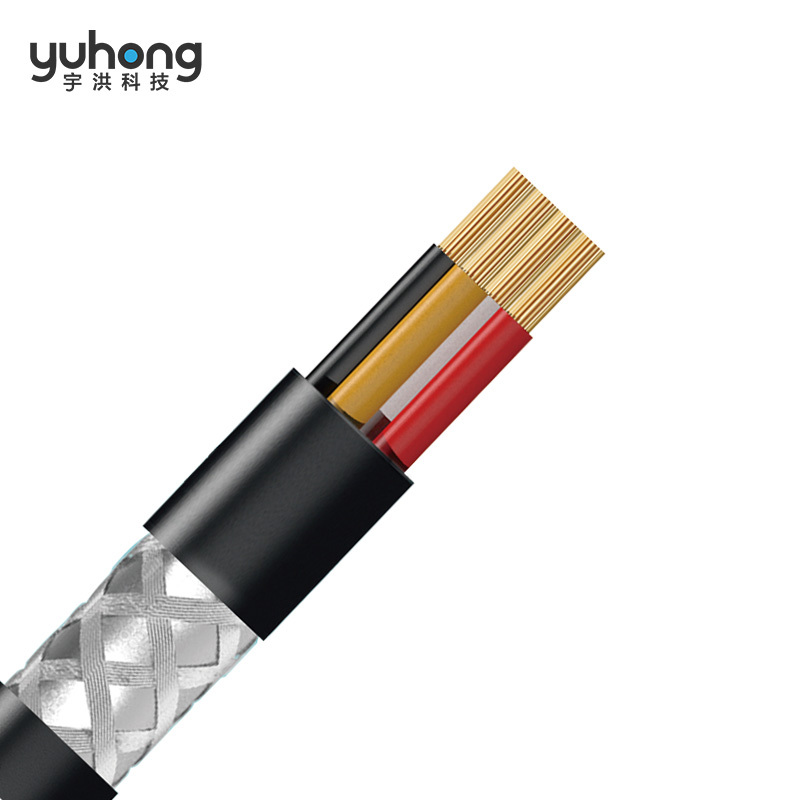

KVV Copper Core PVC Insulation PE Sheath Control Cable is purpose-built for control and monitoring signal transmission in industrial automation, electrical panels, and equipment control circuits. Designed primarily for engineering professionals, procurement teams, and system integrators, this cable supports stable operation at rated voltages up to 450/750V AC. Its compatibility with standard wiring practices facilitates seamless integration with existing systems. Users focused on robust signal integrity and long-term reliability in demanding installations will find this product aligned with requirements set by advanced fiber optic cable suppliers, supporting comprehensive control infrastructure needs.
Key Technical Features and Compliance Specifications
This control cable incorporates a high-purity oxygen-free copper conductor paired with cross-linked PVC insulation and a low-smoke, halogen-free PVC outer sheath, ensuring enhanced fire safety and minimal emission of toxic gases during emergencies. It is rated to operate continuously at temperatures up to 70°C and is suitable for installation in conditions not lower than 0°C, maintaining mechanical and electrical performance. The cable structure reduces resistance and heat build-up, optimizing efficiency in control circuits. Compliance with GB/T 9330-2020 standards certifies consistent quality, positioning this product in line with expectations from fiber optic cable manufacturers and jumper wires suppliers specializing in high-performance cabling solutions.
Applications in Automation and Control Systems Deployment
This cable is widely utilized in automation systems, including programmable logic controller (PLC) I/O connections, sensor and actuator wiring within factory automation, control wiring in machinery, and HVAC control circuits in commercial buildings. Its durability and fire safety benefits support use in enclosed control panels and automated production line environments. The cable’s construction ensures ongoing signal fidelity and operational safety in areas with stringent regulatory requirements. For organizations sourcing cables through fiber optic cable suppliers or jumper wires distributors, this control cable provides a cost-effective yet technically reliable option for enhanced control circuit performance across diverse industrial sectors.
Structural and Integration Strengths of Cable Design
The KVV Copper Core Control Cable is engineered with modular conductor configurations offering straightforward installation and reliable connection integrity, supporting system scalability. The use of a low-smoke, halogen-free PE sheath enhances fire safety while maintaining environmental compliance, a critical feature in modern facility standards. This cable’s cross-linked PVC insulation adds robust dielectric protection, mitigating electrical risks under variable operational loads. These design elements ensure compatibility with typical jumper wires assemblies and fiber optic jumper cable infrastructures, supporting multi-layered control network implementations requiring both electrical and optical signal management.
Operational Performance and End-User Value Proposition
Performance-wise, the cable ensures low resistance through its high-purity copper conductors, contributing to energy efficiency and signal stability, essential for automated control environments. User installation benefits are realized through specified minimum bending radii and temperature tolerances, simplifying field deployment while minimizing cabling damage risks. Its compliance with recognized standards translates to reduced maintenance needs and extended lifecycle, providing procurement and engineering teams with clear return on investment. When sourced via reputable fiber optic cable manufacturers and jumper wires suppliers, this cable fulfills strict industrial criteria for effective, safe, and durable control wiring solutions.
Control Cabinet Wiring in Industrial Automation Environments
Within manufacturing plants and process automation settings, control cabinets play a central role in housing sensitive control circuitry. The KVV Copper Core PVC Insulation PE Sheath Control Cable is deployed to connect PLCs, sensors, and actuators, ensuring precise signal transmission within these enclosures. The cable’s low-smoke, halogen-free sheath complies with fire safety protocols mandated by industrial standards, reducing hazards in case of fire incidents. Its electrical and mechanical properties allow it to endure the temperature range and bending stresses typical in confined cabinet layouts. Integration of this cable alongside jumper wires and fiber optic jumper cable assemblies enhances system modularity and future scalability across automated workflows.
Building Management and HVAC Control Applications
In commercial building management systems, the cable serves as a reliable medium for control circuits related to heating, ventilation, and air conditioning (HVAC). Its design supports stable signaling necessary for automated temperature regulation and equipment monitoring. Compliance with GB/T 9330-2020 and other safety standards facilitates adherence to building codes emphasizing fire safety and environmental protection. The cable’s robust construction and operational temperature margins ensure consistent performance in variable indoor environments. For procurement through fiber optic cable manufacturers or jumper wires suppliers, this cable complements broader communication and control networks, delivering vital infrastructure support for modern smart building applications.
FAQ
What materials are used in the KVV Copper Core PVC Insulation PE Sheath Control Cable?
We manufacture our control cables using high-purity oxygen-free copper conductors for superior conductivity, cross-linked PVC insulation for durability, and a low-smoke, halogen-free PVC sheath that enhances fire safety. These materials comply fully with GB/T 9330-2020 standards to ensure reliable performance in industrial settings.
Can your KVV control cables be customized to specific project requirements?
Yes, we offer a range of conductor sizes from 2×1 mm² to 10×2.5 mm² and can produce custom lengths based on your project specifications. Whether you need specialized configurations for automation systems or require specific lengths, we tailor our cables to fit your control wiring demands.
What installation practices should I follow to ensure long-term performance?
To maintain cable integrity, we recommend respecting the bending radius—at least four times the outer diameter for cables smaller than 25mm. Also, installation must occur above 0°C to avoid damage to the insulation. Following these guidelines helps preserve the cable’s electrical and mechanical properties.
Do you supply related products like jumper wires or fiber optic cables?
Yes, in addition to control cables, we provide a comprehensive selection of jumper wires and are a trusted fiber optic cable supplier and manufacturer. Our product range supports diverse industrial requirements, ensuring compatibility and quality for complex communication and control infrastructure.
