RVVP COPPER CONDUCTOR PVC INSULATED SHIELDED FLEXIBLE WIRE

Name: RVVP COPPER CONDUCTOR PVC INSULATED SHIELDED FLEXIBLE WIRE
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

1. Application Scope

Suitable for intelligent building automation control systems, burglar alarm systems, access control systems, smart home systems, mechanical instruments, and electronic devices requiring shielded anti-interference system cables with an AC rated voltage of U0/U 300/300V or below.

2. Notes

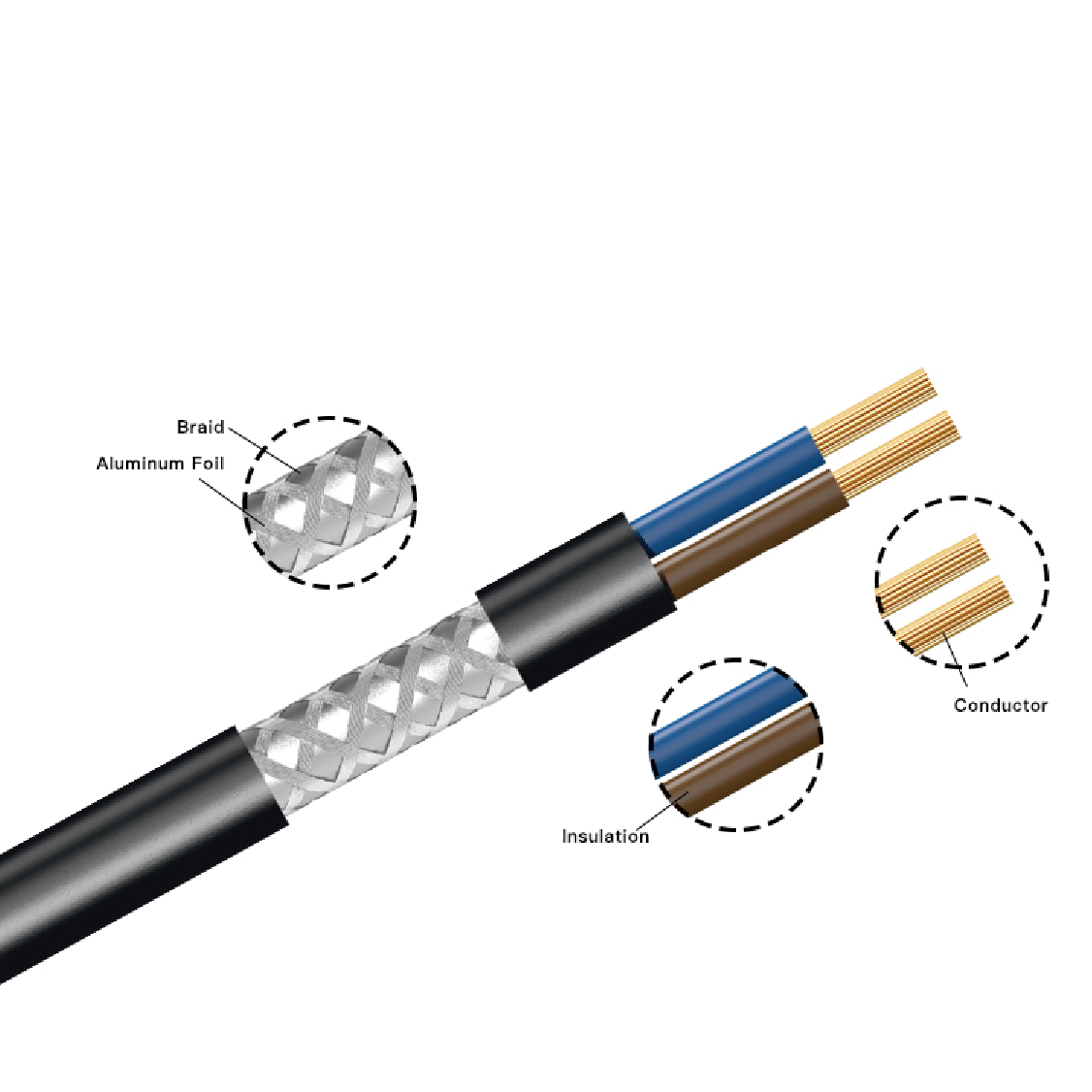

Material: The conductor is made of high-purity oxygen-free copper wire twisted into shape, with insulation and sheathing made of high-quality environmentally friendly polyvinyl chloride material, and shielding made of aluminum foil + high-density tin-plated copper mesh braiding.
Standards: JB/T8734.5-2016 Voltage: U0/U: 300/300V

Get The Latest Quote

Description

Operating Characteristics

Long - term operating temperature: ≤70℃
Cable laying ambient temperature: ≥0℃
Bending radius: Flexible cable (D < 25mm, ≥4D; D ≥ 25mm, ≥6D)
Structure: Conductor + Insulation (two - layer structure)

DOWNLOAD CATEGORY SPECIFICATIONS

Parameter Table

Specification (mm²)	Conductor Structure (n/mm)	Insulation Thickness (mm)	Sheath thickness (mm)	Finished product outer diameter (mm)	Conductor Resistance at 20℃ (Max, Ω/km)	Insulation Resistance at 70℃ (Min, MΩ·km)	Current - Carrying Capacity Reference Value A
2*0.12	7/0.15	0.4	0.6	3.8	158.0	0.016	1.0
2*0.2	12/0.15	0.4	0.6	4.3	92.3	0.013	2.0
2*0.3	16/0.15	0.5	0.6	5.1	69.2	0.014	3.0
2*0.5	16/0.20	0.5	0.6	5.8	39.0	0.013	5.0
2*0.75	24/0.20	0.5	0.6	6.2	26.0	0.012	7.0
2*1.0	32/0.20	0.6	0.7	7.2	19.5	0.010	11.0
2*1.5	48/0.20	0.7	0.8	7.9	13.3	0.009	17.0
2*2.5	49/0.25	0.8	1.0	9.7	7.98	0.009	26.0
2*4.0	81/0.25	0.8	1.2	11.3	4.95	0.007	35.0
3*0.12	7/0.15	0.4	0.6	4.3	158.0	0.016	1.0

Note：For more product information, please click on the PDF file.
