This product complies with application standards such as GB 50311, ISO/IEC 11801, and ANSI/TIA-568.2-D, while also providing additional performance metrics and bandwidth reserves to ensure that the product meets application requirements. It is suitable for all structured cabling applications and can be used to transmit voice, data, and digital or analog audio and video signals.

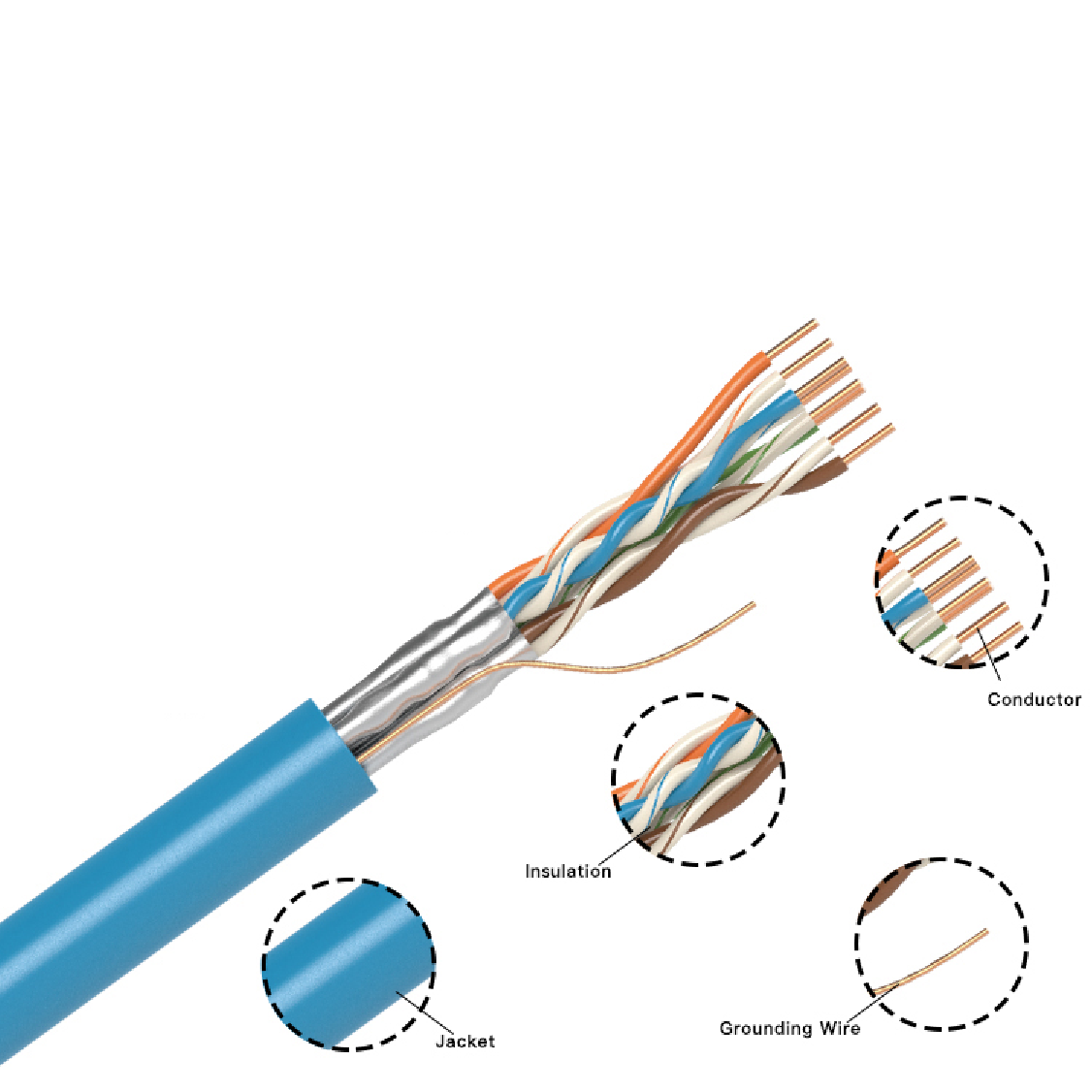

High-quality shielded data copper cable with superior electrical and mechanical performance, with bandwidth tested up to 155 MHz. The overall shielding structure, featuring aluminum foil and copper braided mesh, achieves excellent shielding performance. Additionally, its heat dissipation efficiency makes it suitable for POE and POE+ applications. The outer jacket material is available in PVC or LSOH, with flame retardancy compliant with IEC 60332-1, and is compatible with all connectors currently compliant with GB 50311 and ISO/IEC 11801 standards. PVC or LS0H, with flame-retardant properties compliant with IEC 60332-1. It is compatible with all connectors currently compliant with GB 50311 and ISO/IEC 11801 standards.
Product Performance
Transmission Bandwidth: 100MHz
Conductor Resistance (at 20℃): 93.8Ω/km
Capacitive Reactance：42pF/m
Characteristic Impedance: 100±5Ω
NVP：69%
Tensile Strength：≤91N
Compression Resistance：≥1000N/10cm
Impact Resistance：≥10 impacts
Bending Radius：When pulling ≥52mm When fixed ≥26mm
Temperature Range: Installation: Installation temperature: 0°C to +50°C Operating temperature: -20°C to +60°C
