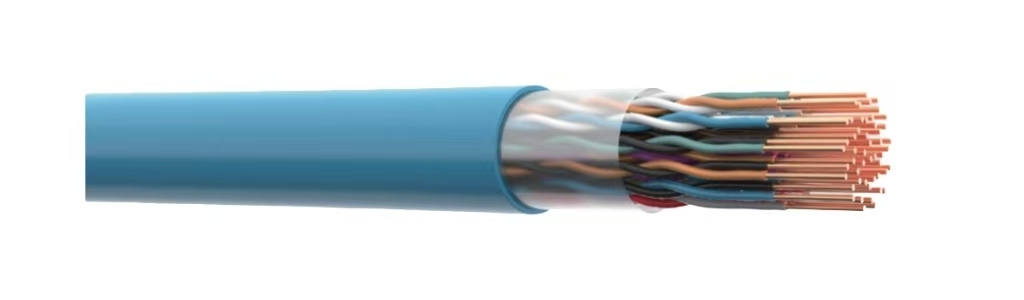

TDX50A 25P,Unshielded Multipairs Cable(U/UTP)Cat.5, AWG24

Product Description

Functional Positioning for Network Infrastructure Professionals

The TDX50A 25P cable is tailored for network engineers and system integrators requiring dense multipair connections in indoor environments. Designed as an unshielded Cat.5e U/UTP solution with 25-pair AWG24 conductors, it addresses complex wiring needs in office buildings and campuses. The product aligns with standards such as GB 50311 and ISO/IEC 11801, ensuring seamless integration with industry-standard hardware like RJ45 connectors and patch panels. Our fiber optic cable manufacturers produced this cable specifically for infrastructures demanding reliable voice and data transmission at a competitive cost within high-density network cabling projects.

Technical Attributes Ensuring Consistent Electrical Performance

This cable features a bandwidth rating of up to 100 MHz, meeting typical Cat.5e performance parameters. Its 12.5 mm diameter and flame-retardant sheath options (FRNC/LSOH or PVC/LSOH) provide compliance with safety and regulatory requirements in indoor settings. With conductor resistance standardized at 9.5 Ω/km and characteristic impedance tightly controlled around 100×15 Ω, the TDX50A ensures low cross-talk and minimal signal attenuation over runs. Packaged in 305 m boxes, it supports large-scale deployments, while the insulation capacitance limits support predictable signal transmission. Our role as a fiber optic cable supplier involves rigorous manufacturing quality to maintain these electrical and mechanical specifications consistently.

Applicable Use Cases in Enterprise and Campus Networks

The unshielded 25-pair design situates the TDX50A ideally for backbone and horizontal LAN connections, particularly in commercial office floors, campus building interlinks, and refurbishment of existing wiring systems. Its durability and flame-retardant sheath options safeguard network integrity in jurisdictions with strict fire codes while maintaining compatibility with conventional networking equipment. Users leveraging this cable benefit from reduced terminations due to long continuous runs, enhancing installation efficiency. This solution effectively supports various infrastructure workflows, offering engineers dependable performance in high-density fiber optic jumper cable assemblies and jumper wires applications within enterprise-grade communication systems.

Structural Integration and Compliance Benefits

TDX50A 25P incorporates a structurally sound cable design optimized for indoor multipair data transmission. The unshielded architecture reduces complexity and cost, while the robust AWG24 copper conductors ensure electrical stability. Designed to meet GB 50311 and ISO/IEC 11801 standards, it facilitates regulatory compliance and seamless connectivity with existing infrastructure components. This cable accommodates integration with fiber optic jumper cable systems and jumper wires, making it adaptable for various structured cabling solutions. Its modular packaging and sheath materials (FRNC/LSOH or PVC/LSOH) also enhance installation flexibility and fire safety across different building codes. As a product sourced from experienced fiber optic cable manufacturers, TDX50A supports system-level optimization in network design.

Performance Reliability and Operational Value

The cable delivers high performance through low conductor resistance and characteristic impedance control, essential for minimizing data errors and signal loss. Its 100 MHz bandwidth supports broadband data transmission requirements common to modern enterprise and campus deployments. Flame-retardant outer sheaths minimize fire hazard risks, promoting safer indoor environments. The cable’s design supports efficient installation cycles, reducing labor costs in extensive network rollouts. Additionally, consistent electrical properties enable engineers to forecast network behavior accurately. Facilities relying on jumper wires and fiber optic jumper cable configurations benefit from enhanced signal integrity and ease of maintenance, underscoring the cable’s operational advantages across diverse communication environments.

LAN Backbone and High-Density Office Deployments

In office environments demanding extensive voice and data connectivity, TDX50A 25P functions as a primary backbone cabling medium linking patch panels and switches. Its U/UTP Cat.5e design caters to large-scale, unshielded multipair transmission needs, ensuring low cross-talk and adherence to bandwidth requirements. Network administrators rely on this cable to maintain compliance with fire retardant standards via FRNC/LSOH or PVC/LSOH sheaths, crucial in high-occupancy buildings. The cable integrates smoothly with jumper wires and fiber optic jumper cable assemblies during commissioning phases, facilitating efficient system configurations in densely cabled racks and distribution frames typical of campus LANs.

Infrastructure Refurbishment and Multi-Floor Cabling Expansion

During upgrades of existing commercial properties, the TDX50A 25P cable provides a cost-effective solution to extend or replace legacy cabling. Its 25-pair construction supports high-density interconnections needed for multi-floor voice and data endpoints, enabling consolidation of wiring pathways and reducing cable bulk. Compliance with international standards ensures compatibility with established networking equipment while flame-retardant sheathing meets strict safety codes. Procurement teams and installation professionals appreciate this cable from fiber optic cable manufacturers for its durability and performance in environments where jumper wires and fiber optic jumper cable accessories are integrated into structured cabling designs, thereby streamlining rollout timelines and future-proofing network infrastructures.

FAQ

What certifications does the TDX50A 25P cable comply with?

Our TDX50A 25P cable meets GB 50311 and ISO/IEC 11801 standards, ensuring high-quality network performance. It also features a flame-retardant outer sheath available in FRNC/LSOH or PVC/LSOH, providing safety and reliability in indoor installations.

Can the TDX50A cable be customized in terms of length or color?

We offer the TDX50A cable in 305 m boxes with color options including gray, blue, orange, and black. For specific length requirements or other customization, please contact us directly so we can tailor solutions to your project needs.

Is the cable suitable for use in multi-floor office buildings?

Yes, the TDX50A 25P is designed for high-density 25-pair interconnections, making it ideal for in-wall data cabling in multi-floor office deployments. Its AWG24 conductors and Cat.5e specifications ensure consistent signal integrity across longer runs.

Do you supply jumper wires or fiber optic cable products alongside this cable?

Yes, alongside the TDX50A 25P data cable, we supply a range of jumper wires and are recognized as a reliable fiber optic cable supplier. Our product range supports comprehensive networking infrastructure requirements for commercial and industrial applications.
