This product meets application standards such as GB 50311, ISO/IEC 11801, and ANSI/TIA-568.2-D, and provides additional performance indicators and reserved bandwidth. It also extends the definition to 155MHz to ensure that the product meets application requirements. It meets all Class D applications and is used to transmit voice, data, and digital or analog audio and video signals.

Get The Latest Quote

Description

Product Features

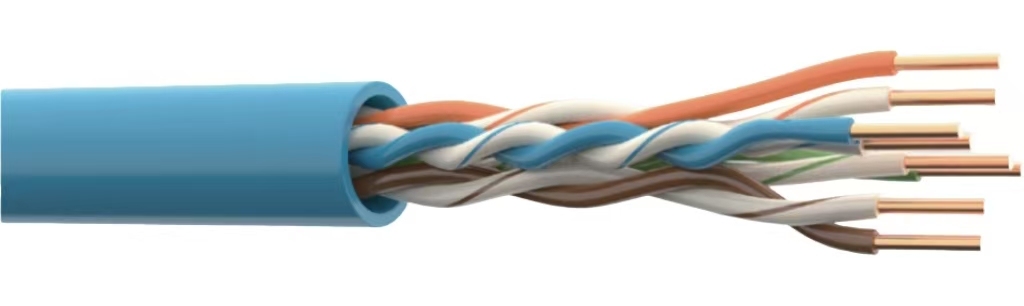

High-quality electrical and mechanical performance ultra-category 5 data copper cable with bandwidth testable up to 155 MHz; with reasonable twist control, it provides excellent performance indicators and meets the IEC 60332-1 flame retardant standard with PVC and LSOH outer sheath products; compatible with all current connectors that meet GB 50311 and ISO/IEC 11801 standards.

Product Performance

Transmission Bandwidth: 100MHz
Conductor Resistance (at 20℃): 93.8Ω/km
Capacitive Reactance：56pF/m
Characteristic Impedance: 100±5Ω
NVP：65%
Tensile Strength：≤110N
Bending Radius：When pulling, ≥ 8 times the diameter; when fixed, ≥ 4 times the diameter.
Temperature Range: Installation: Installation temperature: 0°C to +50°C
Operating temperature: -20°C to +60°C
Halide Content: GB/T 17650.1,GB/T 17650.2,IEC 60754-1/-2
Flame Spread: GB/T 17651,IEC 61034-1/-2
Smoke Density: GB/T 18380.12,GB/T18380.33,GB/T 18380.35IEC 60332-1 IEC 60332-1，IEC 60332-3-22，IEC 60332-3-24GB 31247

Order Information

Product Model	Product Description	Outer Diameter	Color	Unit
TDX51A-UNU4PVL-GYBA	Unshielded twisted pair Cat.5e, FR/PVC	5.0mm	Gray	305m/box
TDX51A-UNU4PZL-BUBA	Unshielded twisted pair Cat.5e, FRNC/LS0H	5.0mm	Blue	305m/box
TDX51A-UNU4PZA-OGBA	Unshielded twisted pair Cat.5e, FRNC/LS0H/3A	5.5mm	Orange	305m/box
TDX51A-UNU4PZC-OGBA	Unshielded twisted pair Cat.5e, FRNC/LS0H/3C	5.5mm	Orange	305m/box
TDX51A-UNU4PBE-BUBA	Unshielded twisted pair Cat.5e, GB/B1	5.3mm	Blue	305m/box

Notes:

FR/PVC = Flame Retardant/Polyvinyl Chloride
FRNC/LSOH = Flame Retardant Non-Corrosive/Low Smoke Zero Halogen IEC 60332-1
FRNC/LSOH = Flame Retardant Non-Corrosive/Low Smoke Zero Halogen IEC 60332-3-22/-24
GB/B1 = GB 31247-B1
