This product complies with application standards such as GB 50311, ISO/IEC 11801, and ANSI/TIA-568.2-D, while providing additional performance metrics and bandwidth reserves. It also extends the definition to 350 MHz, meeting all requirements for Class E/Cat.6, ensuring the product meets application needs. It supports all Class E applications for transmitting voice, data, and digital or analog audio and video signals.

Get The Latest Quote

Description

Product Features

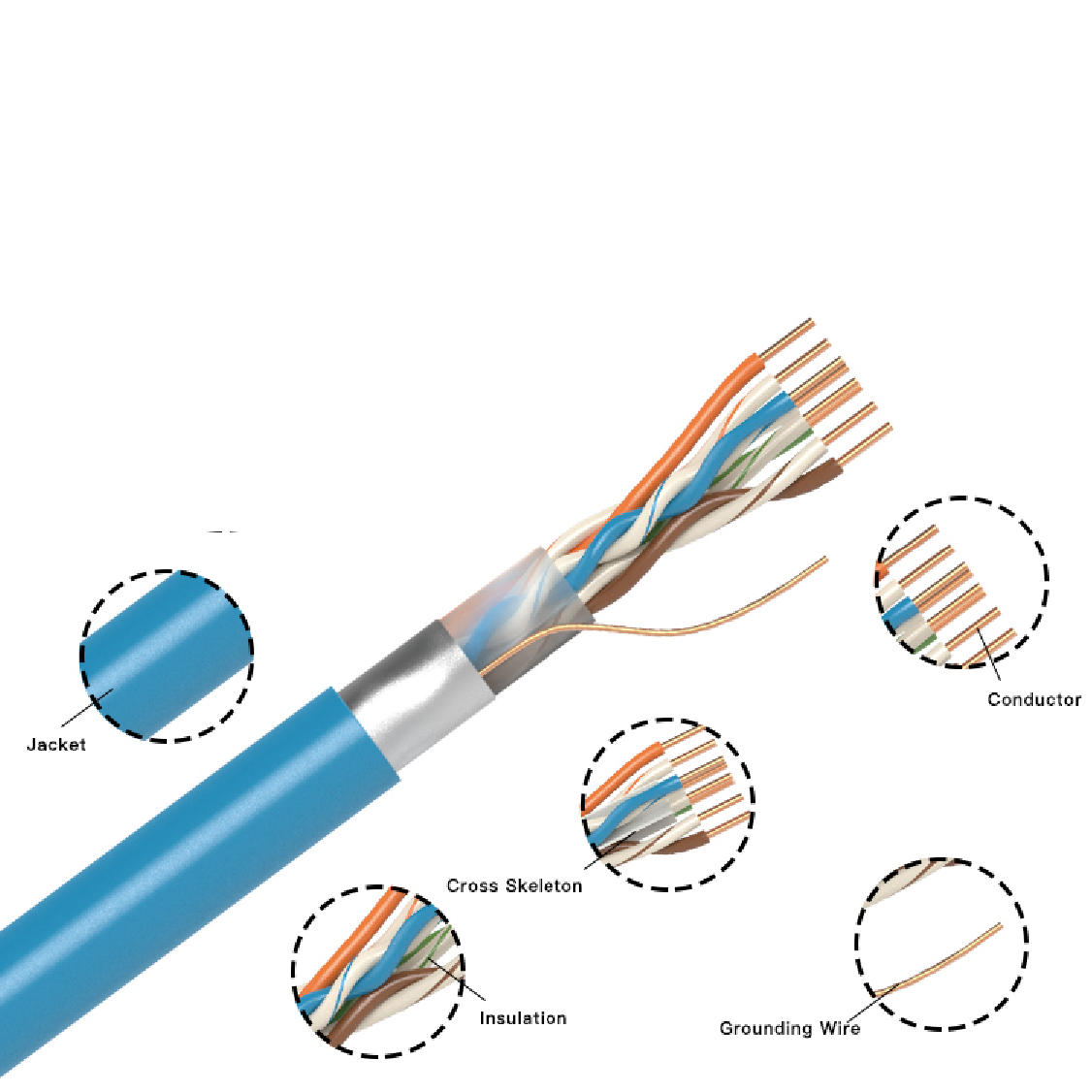

Category 6 data copper cables with high-quality electrical and mechanical performance can be tested up to 350 MHz bandwidth; with a cross-shaped skeleton and overall shielding structure, they achieve excellent resistance to external electromagnetic interference and pair crosstalk; PVC and LS0H outer sheath products that meet the IEC 60332-1 flame retardant standard are available; compatible with all current connectors that comply with GB 50311 and ISO/IEC 11801 standards.

Product Performance

Transmission Bandwidth: 250MHz
Conductor Resistance (at 20℃): 93.8Ω/km
Capacitive Reactance：42pF/m
Characteristic Impedance: 100±5Ω
NVP：68%
Tensile Strength：≤110N
Bending Radius：When pulling ≥58mm When fixed ≥28mm
Temperature Range: Installation: Installation temperature: 0°C to +50°C
Operating temperature: -20°C to +60°C
Halide Content: GB/T 17650.1,GB/T 17650.2,IEC 60754-1/-2
Flame Spread: GB/T18380.12,IEC 60332-1 GB 31247
Smoke Density: GB/T 17651,IEC 61034-1/-2

Order Information

Product Model	Product Description	Outer Diameter	Color	Unit
TDX60A-FNU4PVL-GYRA	TDX60A Shielded Twisted Pair Cat.6, FR/PVC	7.3mm	Gray	305m/box
TDX60A-FNU4PZL-BURA	TDX60A Shielded Twisted Pair Cat.6, FRNC/LS0H	7.3mm	Blue	305m/box
TDX60A-FNU4PBE-BURA	TDX60A Shielded Twisted Pair Cat.6, GB/B1	7.6mm	Blue	305m/box

Notes:

FR/PVC = Flame Retardant/Polyvinyl Chloride
FRNC/LSOH = Flame Retardant Non-Corrosive/Low Smoke Zero Halogen
GB/B1 = Compliant with GB31247-B1 Grade Flame Retardant
