Optimized for Enterprise-Level Structured Cabling
The Yuhong TDX60B-4P Cat6 UTP cable is designed for high-speed data transmission in business and institutional environments. Offering enhanced signal integrity and a bandwidth of up to 250 MHz, this cable enables seamless operation of voice, video, and data services across Ethernet networks. With its LAN cable configuration based on 4 tightly twisted pairs, it minimizes signal loss and supports Gigabit Ethernet applications in data centers, office floors, and wiring closets. Whether used for vertical backbone cabling or floor-level runs, it meets ANSI/TIA-568 standards and offers excellent mechanical and electrical performance.
Category 6 Architecture with Tight-Twist Balance

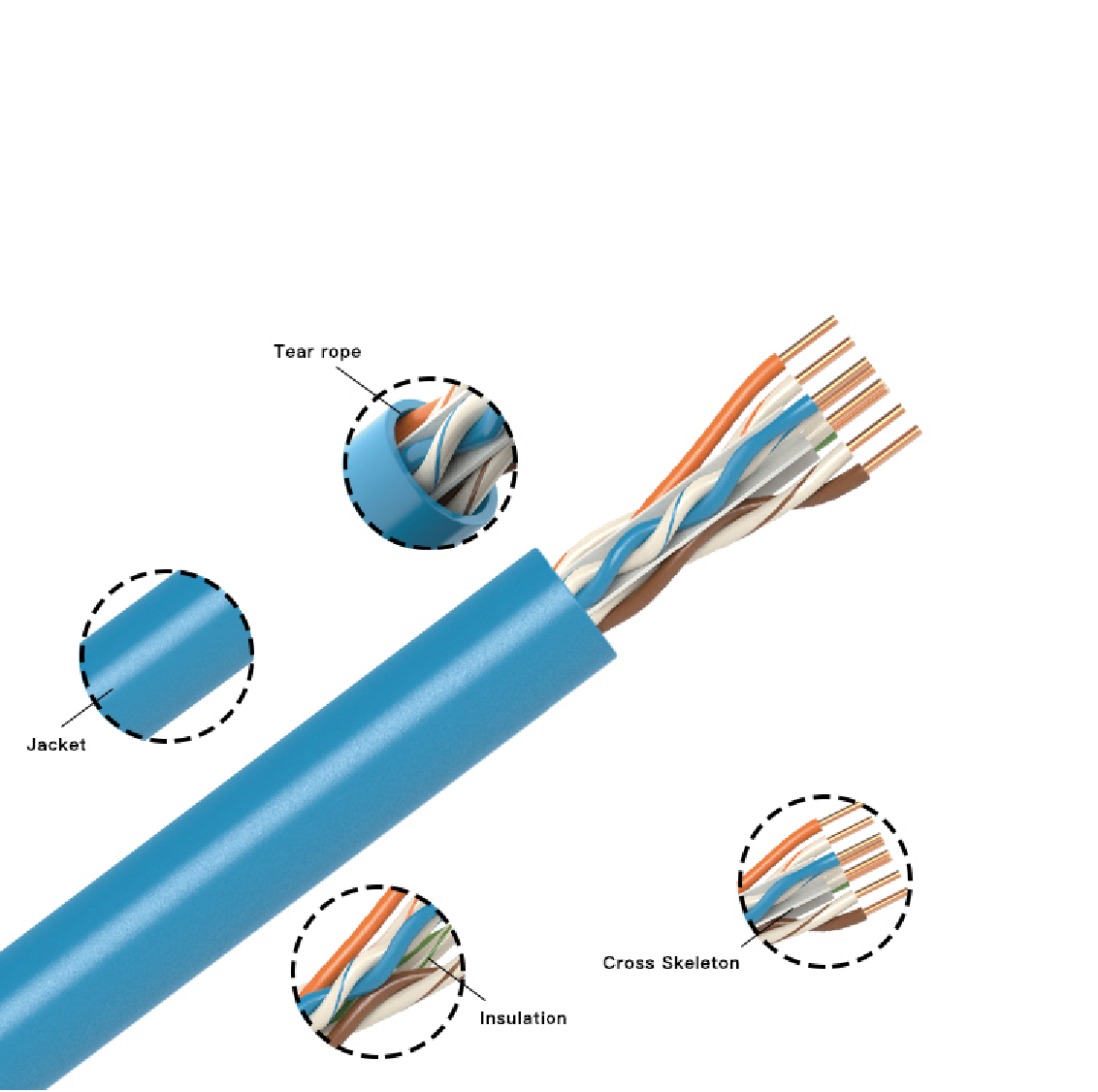

Each conductor in the TDX60B-4P is 24 AWG solid copper, twisted into precise pair configurations that reduce internal and external crosstalk. The unshielded design facilitates flexibility during installation, particularly in dense wiring bundles or tight pathways. Despite its UTP construction, the optimized twist rate and pair separation maintain signal clarity in electrically noisy environments. For network cable integrators, this structure offers a dependable choice for installations where electromagnetic shielding is not required but signal discipline remains critical.
Long-Term Consistency for Building-Wide Distribution
With support for PoE (Power over Ethernet) and backward compatibility with Cat5e systems, TDX60B-4P is suitable for new builds and infrastructure upgrades alike. Its outer PVC jacket provides mechanical durability, while internal flame-retardant insulation supports safety in standard office or educational interiors. As a high-frequency LAN cable for structured cabling, it delivers stable transmission up to 100 meters per channel—enabling full-floor wiring runs without repeaters or boosters.
Product Advantages
24 AWG Solid Copper Conductors for Enhanced Signal Transmission
Unlike stranded-core alternatives, TDX60B-4P utilizes solid copper conductors to provide consistent conductivity and reduced attenuation over long distances. This characteristic is essential for permanent links in horizontal cabling where performance degradation must be minimized. Solid core construction ensures each network cable channel operates at optimal frequency, even when subjected to fluctuating loads from VoIP phones, Wi-Fi access points, or AV systems.
Non-Shielded Structure for Simplified Installation
By adopting a UTP (Unshielded Twisted Pair) design, the cable maintains flexibility and reduced bulk—facilitating easier pull-through in conduit systems or raised floor layouts. The absence of foil or braid shields reduces material cost and labor time, making the product especially attractive for volume installations. For LAN cable installers operating in low-EMI environments, this architecture streamlines layout planning while maintaining Category 6 signal parameters.
Tested for Compatibility with Modern Ethernet Protocols
TDX60B-4P is tested to meet or exceed Cat6 channel requirements under ANSI/TIA and ISO/IEC standards. It supports 10BASE-T, 100BASE-TX, and 1000BASE-T applications, as well as emerging protocols relying on Gigabit-level throughput. This makes it a forward-compatible option for clients anticipating network expansion or increased bandwidth demand. For network cable manufacturers, the cable’s versatile protocol support ensures suitability across multiple verticals, from commercial buildings to smart campuses.
Use Scenarios
IT Deployment in Multi-Tenant Commercial Buildings
System integrators managing cabling across office towers need a LAN cable that can handle high-frequency data while supporting centralized control. TDX60B-4P enables efficient routing from MDF rooms to tenant suites through structured vertical and horizontal backbones. Its solid copper core ensures minimal data loss across entire floors, while its flexibility supports routing through conduits, raceways, and raised flooring systems.
Wired Classroom Networks in Primary and Secondary Schools
Educational institutions deploying computer labs, interactive whiteboards, and IP cameras benefit from a robust network cable that supports consistent connectivity. TDX60B-4P ensures low-latency, interference-free transmission over long indoor runs, even when multiple devices are operating simultaneously. It allows for uniform deployment across classrooms, hallways, and AV rooms, simplifying maintenance and upgrades during school expansions.
Retail Surveillance and Point-of-Sale Network Wiring
In retail stores, cables must support both POS terminals and surveillance systems across dispersed floorplans. TDX60B-4P’s unshielded twisted pair design allows installation without heavy shielding or grounding requirements. It provides sufficient bandwidth and noise immunity for PoE-powered cameras and terminals, while its compact structure simplifies integration into aesthetic or concealed cable paths—ensuring the LAN cable remains functional without compromising store layout or visibility.
About Us
Yuhong Communication is a professional manufacturer of communication infrastructure components with expertise in fiber optics, copper cabling, and passive network accessories. Headquartered in China, the company serves telecom operators, data infrastructure providers, and construction contractors globally. Yuhong produces a wide range of standardized and custom solutions, including twisted pair LAN cables, fiber optic assemblies, and structured wiring accessories. With a focus on engineering precision and regulatory compliance, Yuhong supports clients across government, commercial, and industrial sectors. As a network cable manufacturer, it offers both OEM services and ready-to-deploy models aligned with global cabling standards.
Request a quote from Yuhong now to configure your Cat6 UTP LAN cable for structured installations.
FAQ
Is the TDX60B-4P suitable for Power over Ethernet (PoE) applications?
Yes. The solid copper conductors ensure stable voltage transmission over long distances, making the cable fully compatible with PoE and PoE+ devices, such as access points and IP cameras.
Can this cable be used in shielded systems or high-EMI environments?
As an unshielded cable, TDX60B-4P is best suited for low-EMI environments. For high-EMI zones, a shielded alternative (FTP/STP) would be recommended to ensure signal integrity.
What is the maximum length for a single channel run?
In compliance with Cat6 standards, the maximum channel length is 100 meters, including patch cords and horizontal cabling. Beyond this, repeaters or active devices would be required.
Is the cable compliant with international cabling standards?
Yes. The product meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 standards for Category 6 UTP cables. It also passes factory testing for NEXT, return loss, and propagation delay.
Can I request specific packaging or reel lengths for bulk projects?
Absolutely. Yuhong offers customizable reel sizes and packaging types, including pull boxes and wooden drums, based on your installation preferences and project volume.
