This product meets application standards such as GB 50311, ISO/IEC 11801, and ANSI/TIA-568.2-D, and provides additional performance indicators and reserved bandwidth. The test bandwidth can reach 600 MHz, meeting all Ea-class/Cat.6 requirements to ensure the product's application needs. It supports all Class Ea applications, enabling the transmission of voice, data, and digital or analog audio and video signals.

Get The Latest Quote

Description

Product Features

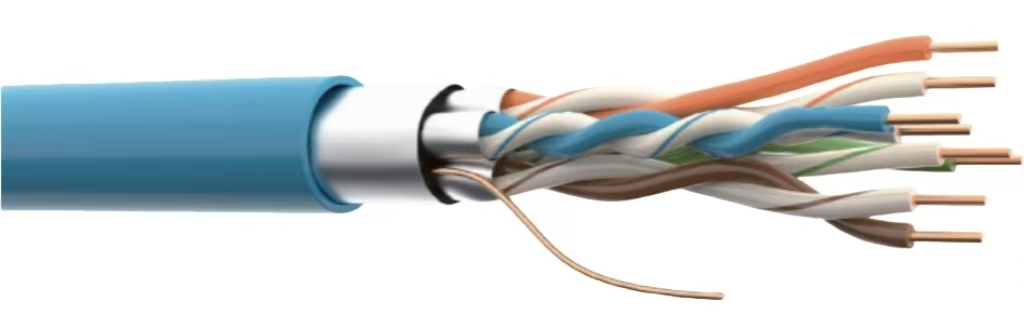

The 6A-class data copper cable features high-quality electrical and mechanical performance, with a test bandwidth of up to 600MHz. Thanks to its dual shielding structure, which combines pair shielding and overall shielding, it effectively suppresses external interference affecting the cable, ensuring excellent electrical performance. It offers PVC and LS0H outer sheath products that meet the IEC 60332-1 flame-retardant standard. Compatible with all connectors currently compliant with GB 50311 and ISO/IEC 11801 standards.

Product Performance

Transmission Bandwidth: 500MHz
Conductor Resistance (at 20℃): 93.8Ω/km
Capacitive Reactance：43pF/m
Characteristic Impedance: 100±5Ω
NVP：68%
Tensile Strength：≤110N
Bending Radius：When pulling, ≥ 8 times the diameter; when fixed, ≥ 4 times the diameter.
Temperature Range: Installation: Installation temperature: 0°C to +50°C
Operating temperature: -20°C to +60°C
Halide Content: GB/T 17650.1,GB/T 17650.2,IEC 60754-1/-2
Flame Spread: GB/T 17651,IEC 61034-1/-2
Smoke Density: GB/T 18380.12,GB/T 18380.33,GB/T 18380.35EC 60332-1，IEC 60332-3-22,IEC 60332-3-24GB 31247

Order Information

Product Model	Product Description	Outer Diameter	Color	Unit
TDX65A-FNF4PVL-GYRA	Shielded twisted pair Cat.6A, FR/PVC	7.1mm	Gray	305m/box
TDX65A-FNF4PZL-BURA	Shielded twisted pair Cat.6A, FRNC/LSOH	7.1mm	Blue	305m/box
TDX65A-FNF4PZA-OGRA	Shielded twisted pair Cat.6A, FRNC/LSOH/3A	7.3mm	Orange	305m/box
TDX65A-FNF4PZC-OGRA	Shielded twisted pair Cat.6A, FRNC/LSOH/3C	7.4mm	Orange
TDX65A-FNF4PZL-BURA	Shielded twisted pair cable Cat.6A, GB/B1	7.6mm	Blue

Notes:

FR/PVC = Flame Retardant/Polyvinyl Chloride
FRNC/LSOH = Flame Retardant Non-Corrosive/Low Smoke Zero Halogen IEC 60332-1
FRNC/LS0H = Flame Retardant Non-Corrosive/Low Smoke Zero Halogen IEC 60332-3-22/-24
GB/B1 = GB 31247-B1
