This product meets application standards such as GB 50311 and ISO/IEC 11801, and provides additional performance indicators and reserved test bandwidth of up to 600MHz, meeting all Ea-class/Cat.6a requirements to ensure application needs. It meets all structured cabling applications for the transmission of voice, data, and digital or analog audio and video signals.

Get The Latest Quote

Description

Product Features

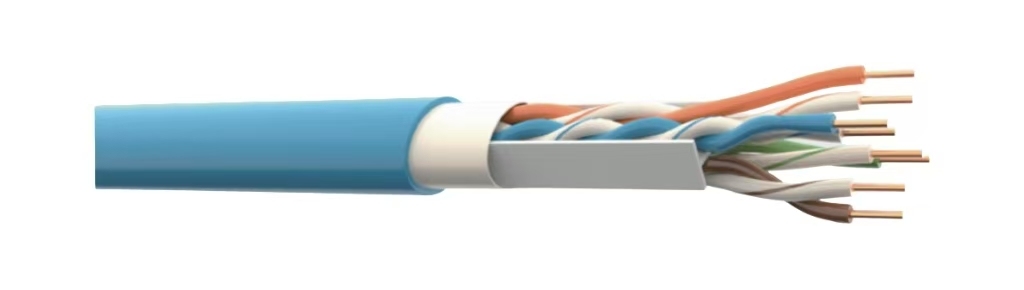

High-quality Category 6A data copper cable with superior electrical and mechanical performance, with a tested bandwidth of up to 600MHz; featuring a unique I-shaped skeleton structure, a dual-layer outer jacket design, and excellent process control technology to deliver outstanding electrical parameters; offering PVC and LS0H outer jacket products compliant with the IEC 60332-1 flame-retardant standard; Compatible with all connectors compliant with GB 50311 and ISO/IEC 11801 standards.

Product Performance

Transmission Bandwidth: 500MHz
Conductor Resistance (at 20℃): 93.8Ω/km
Capacitive Reactance：45pF/m
Characteristic Impedance: 100±5Ω
NVP：68%
Tensile Strength：≤110N
Bending Radius：When pulling, ≥ 8 times the diameter; when fixed, ≥ 4 times the diameter.
Temperature Range: Installation: Installation temperature: 0°C to +50°C
Operating temperature: -20°C to +60°C
Halide Content: GB/T 17650.1, GB/T 17650.2, IEC 60754-1/-2
Flame Spread: GB/T 17651,IEC 61034-1/-2
Smoke Density: GB/T 18380.12,GB/T 18380.33,GB/T 18380.35 IEC 60332-1，IEC 60332-3-22,IEC 60332-3-24 GB 31247

Order Information

Product Model	Product Description	Outer Diameter	Color	Unit
TDX65A-UNU4PVL-GYRA	Unshielded twisted pair Cat.6A, FR/PVC	7.8/8.1mm	Gray	305m/box
TDX65A-UNU4PZL-BURA	Unshielded twisted pair Cat.6A, FRNC/LSOH	7.8/8.1mmm	Blue	305m/box
TDX65A-UNU4PZA-OGRA	Unshielded twisted pair Cat.6A, FRNC/LSOH/3A	7.9/8.2mm	Orange
TDX65A-UNU4PZC-OGRA	Unshielded twisted pair Cat.6A, FRNC/LSOH/3C	7.9/8.2mm	Orange

Notes:

FR/PVC = Flame Retardant/Polyvinyl Chloride
FRNC/LSOH = Flame Retardant Non-Corrosive/Low Smoke Zero Halogen IEC60332-1
FRNC/LSOH = Flame Retardant Non-Corrosive/Low Smoke Zero Halogen IEC60332-3-22/-24
