ZR-RVS COPPER CONDUCTOR FLAME RETARDANT POLYVINYLCHLORIDE IN SULATED TWISTED PAIR CABLE

Name: ZR-RVS COPPER CONDUCTOR FLAME RETARDANT POLYVINYLCHLORIDE IN SULATED TWISTED PAIR CABLE
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

1. Application Scope

Suitable for power connection cables for household appliances, small power tools, electrical instruments, electronic equipment, power equipment lighting, communications, audio, radio and television systems, computers, or surveillance systems with an AC rated voltage of U0/U 300/300V or below.

2. Notes

Conductor material is high-purity oxygen-free copper wire, insulation material is flame-retardant, high-quality, environmentally friendly polyethylene insulation material
GB/T19666-2019, JB/T8734.3-2016 Voltage: U0/U: 300/300V

Get The Latest Quote

Description

Operating Characteristics

Long - term operating temperature: ≤70℃
Cable laying ambient temperature: ≥0℃
Bending radius: Flexible cable (D < 25mm, ≥4D; D ≥ 25mm, ≥6D)

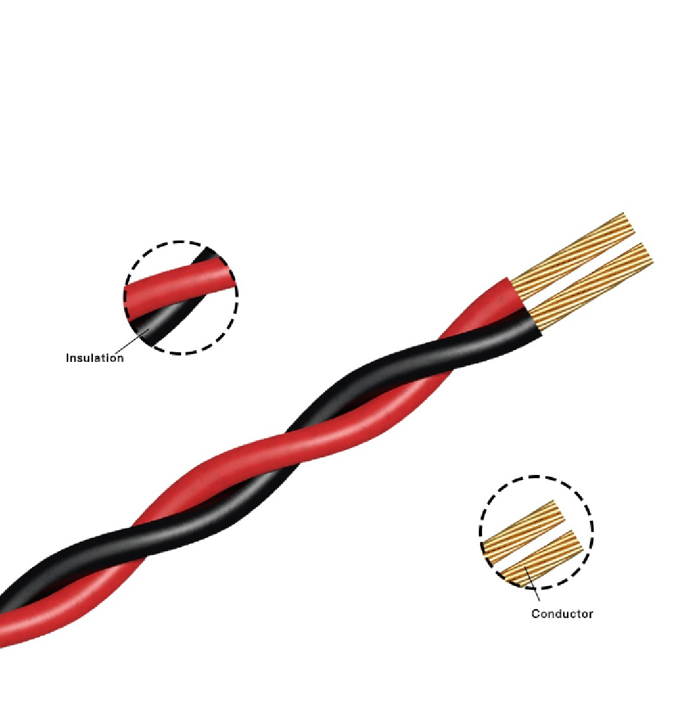

Structure: Conductor + Insulation (two - layer structure)

DOWNLOAD CATEGORY SPECIFICATIONS

Parameter Table

Specification (mm²)	Maximum single wire diameter of conductor (mm)	Insulation Thickness (mm)	Outer Diameter Upper Limit (mm)	Conductor Resistance at 20℃ (Max, Ω/km)	Insulation Resistance at 70℃ (Min, MΩ·km)	Current - Carrying Capacity Reference Value A
2×0.5	0.16	0.8	6.0	39.0	0.016	5
2×0.75	0.16	0.8	6.2	26.0	0.014	7
2×1.0	0.16	0.8	6.6	19.5	0.011	11
2×1.5	0.16	0.8	7.2	13.3	0.01	17
2×2.5	0.16	0.8	8.2	7.98	0.009	26
