ZR-RVS COPPER CONDUCTOR FLAME RETARDANTPOLYVINYL CHLORIDE INSULATED TWISTED PAIR CABLE

Name: ZR-RVS COPPER CONDUCTOR FLAME RETARDANTPOLYVINYL CHLORIDE INSULATED TWISTED PAIR CABLE
Brand: yuhong comms
Availability: InStock
Rating: 5 (1 reviews)

Application Scope

Suitable for power connection lines of household appliances, small electric tools, electrical instruments, electronic equipment, lighting of power equipment, communication, audio, broadcasting sound systems, computers or monitoring and other connection lines under an AC rated voltage U0/U of 300/300V and below.

Get The Latest Quote

Description

Usage Characteristics

The long-term allowable working temperature shall not exceed 70℃.
The laying temperature of the cable shall not be lower than 0℃.
Bending radius: If the outer diameter D < 25mm, it should not be < 4D; if the outer diameter D ≥ 25mm, it should not be < 6D.

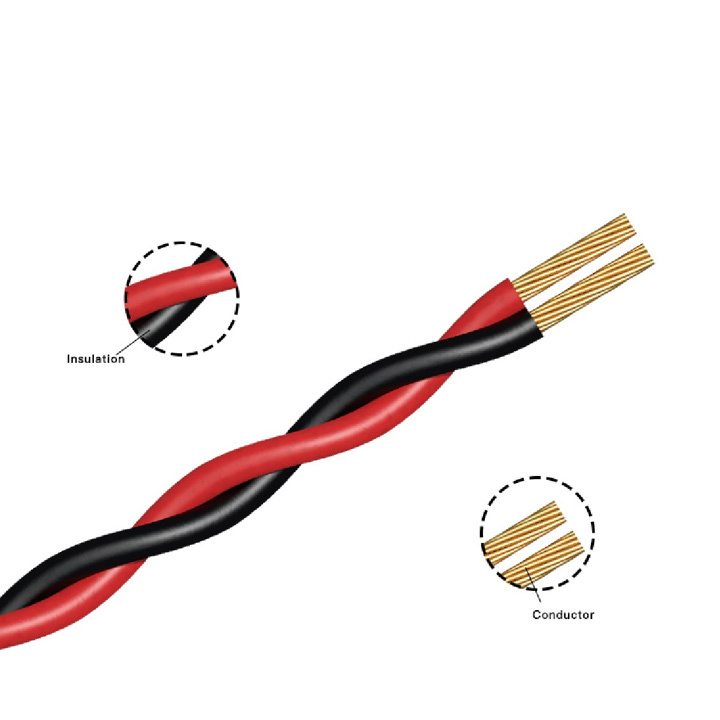

The conductor is copper, and the insulation material is flame retardant polyvinyl chloride.

Specification (mm²)	Maximum Single Wire Diameter of Conductor (mm)	Insulation Thickness (mm)	Maximum Outer Diameter (mm)	Maximum Conductor Resistance at 20℃ (Ω/km)	Minimum Insulation Resistance at 70℃ (MΩ·km)	Reference Ampacity (A)
2×0.5	0.18	0.8	6.0	98.0	0.018	5
2×0.75	0.18	0.8	6.2	26.0	0.014	7
2×1.0	0.18	0.8	6.6	19.5	0.011	11
2×1.5	0.18	0.8	7.2	13.3	0.01	17
2×2.5	0.18	0.8	8.2	7.38	0.009	25

Note: For parameters of other color modules, please consult local sales and technical personnel.

Other Information

Implementation Standard: GB/T 18380-2018, JB/T 8734.3-2016
Rated Voltage: U0/U 300/300V
